Liberty Pumps 3048LSG202
LIBERTY SIMPLEX PUMP PCKG
SKU
918978
Liberty Pumps®, 3048LSG202, 1-Stage Pre-Assembled, Series: 30486LSG, 50 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Automatic, 147 gal Basin, 4 in Hub Inlet, 1-1/4 in FNPT Outlet, 110 ft Maximum Head, 2 hp, 208 to 230 VAC, 15 A Full Load/53 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, Guide Rail System Mounting, 221 deg F Thermal Overload, Upper Ball/Race and Lower Ball/Race Bearing, 48 in L x 36 in W x 48 in H Dimensions

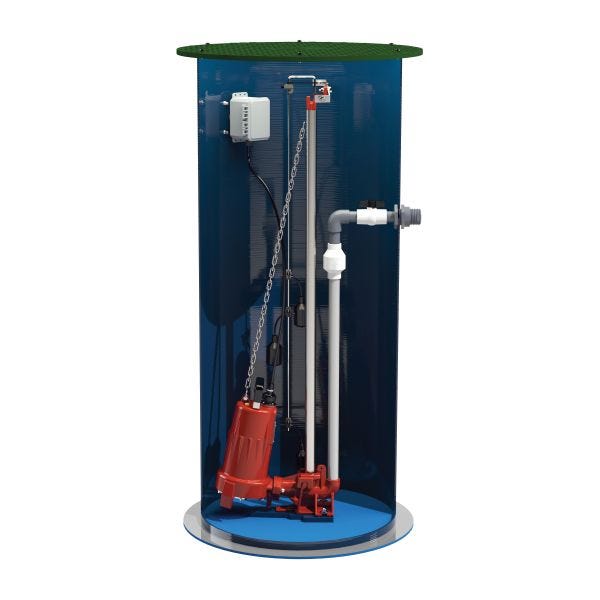

- Factory assembled 2 hp grinder pump 24 in diameter system
- Pre-mounted floats for pump control and alarm
- 4 in Fiberglass hub with 4 in rubber pipe seal
- Factory pre-assembled guide rail system
- All stainless steel supports and brackets pre-mounted
- Stainless steel chain for pump lift out
- 12 in discharge depth
- All stainless steel fasteners
- 1-1/4 in SCH 80/XH PVC discharge piping
- NEMA 4X junction box for electrical connections, pre-mounted
| Service Factor | 1 |
|---|---|
| Outlet Size | 1-1/4 in FNPT |
| Cord Type | SJOOW 25 ft |
| Motor Speed | 3450 rpm |
| Series | 30486LSG |
| Bearing Type | Upper Ball/Race and Lower Ball/Race |
| Basin Capacity | 147 gal |
| Inlet Size | 4 in Hub |
| Mounting Type | Guide Rail System |
| Dimensions | 48 in L x 36 in W x 48 in H |
| Rated Head | 10 ft |
| Frequency Rating | 60 Hz |
| Type | 1-Stage Pre-Assembled |
| Horsepower | 2 hp |
| Maximum Flow Rate | 50 gpm |
| Maximum Head | 110 ft |
| Impeller Type | 300 Stainless Steel |
| Automatic/Non Automatic | Automatic |
| Temperature Rating | 221 deg F Thermal Overload |
| Amperage Rating | 15 A Full Load/53 A Locked Rotor |
| Voltage Rating | 208 to 230 VAC |
| Phase | 1 ph |
| Brand | Liberty Pumps |
