Liberty Pumps D3672LSG202-24
LIBERTY DUPLEX GRINDER PKG
SKU
747588
Liberty Pumps®, D3672LSG202-24, Pre-Assembled, Series: D3672LSG, 50 gpm Maximum, 10 ft Rated Head, 317 gal Basin, 4 in Hub Inlet, 1-1/4 in NPT Outlet, 110 ft Maximum Head, 2 hp, 208 to 230 VAC, 15 A Full Load/53 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, Guide Rail System Mounting, 275 deg F Thermal Overload, NEMA 4X Enclosure, Single Ball/Race Upper or Heavy Duty Ball/Race Lower Bearing, Fiberglass

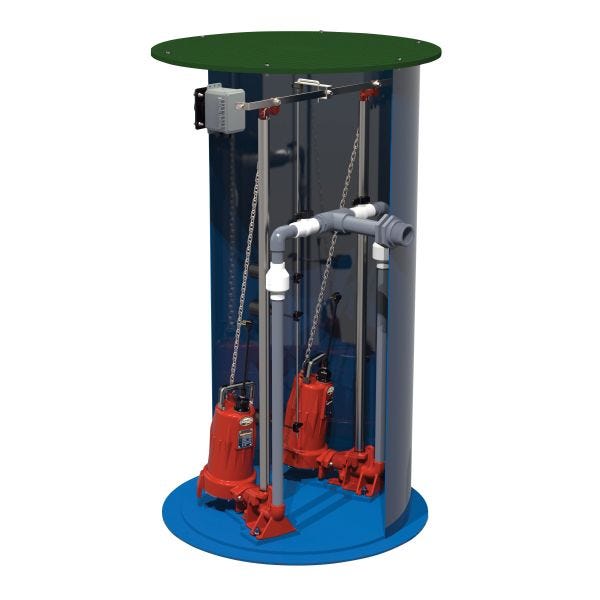

- Factory assembled 2 hp grinder pump 36 in diameter system
- 4 in Fiberglass hub with 4 in rubber pipe seal
- Factory pre-assembled guide rail system
- All stainless steel supports and brackets pre-mounted
- Stainless steel chain for pump lift out
- 24 in discharge depth
- Standard green fiberglass solid cover
- Single-stage submersible pump
- 2 in SCH 80/XH discharge pipe
| Material | Fiberglass |
|---|---|
| Service Factor | 1 |
| Outlet Size | 1-1/4 in NPT |
| Cord Type | SJOOW 25 ft |
| Motor Speed | 3450 rpm |
| Series | D3672LSG |
| Bearing Type | Single Ball/Race Upper or Heavy Duty Ball/Race Lower |
| Enclosure Type | NEMA 4X |
| Basin Capacity | 317 gal |
| Inlet Size | 4 in Hub |
| Mounting Type | Guide Rail System |
| Rated Head | 10 ft |
| Frequency Rating | 60 Hz |
| Type | Pre-Assembled |
| Horsepower | 2 hp |
| Maximum Flow Rate | 50 gpm |
| Maximum Head | 110 ft |
| Impeller Type | 300 Stainless Steel |
| Temperature Rating | 275 deg F Thermal Overload |
| Amperage Rating | 15 A Full Load/53 A Locked Rotor |
| Voltage Rating | 208 to 230 VAC |
| Phase | 1 ph |
| Brand | Liberty Pumps |
