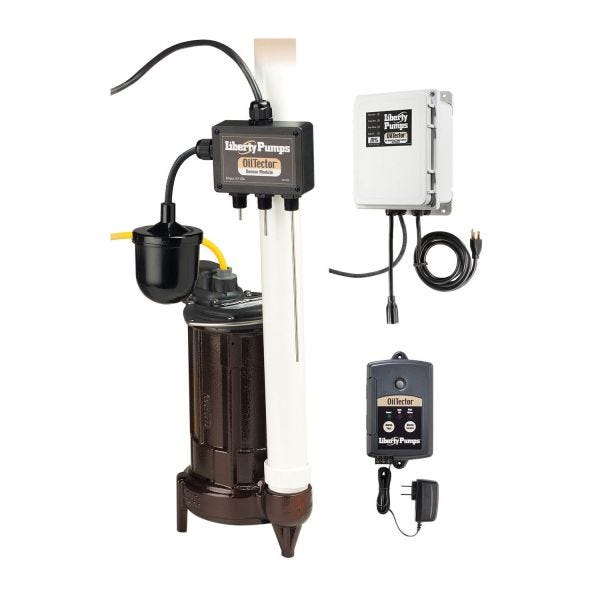

Liberty Pumps ELV290HV
3/4HP 208V OILTECTOR SYS
SKU
557140
Liberty Pumps®, ELV290HV, Series: ELV, 77 gpm Flow Rate, 1-1/2 in Outlet, 3/4 hp, 208 to 230 VAC, 5.3 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJEOOW Cord, Vortex Impeller, 221 deg F Thermal Overload, Ball Bearing, Cast Iron
- Complete packaged system
- Remote alarm
- Easy clamp mount installation, with plug-in ready wiring
| Amperage Rating | 5.3 A |
|---|---|
| Frequency Rating | 60 Hz |
| Motor Speed | 3450 rpm |
| Temperature Rating | 221 deg F Thermal Overload |
| Horsepower | 3/4 hp |
| Phase | 1 ph |
| Cord Type | SJEOOW |
| Impeller Type | Vortex |
| Series | ELV |
| Flow Rate | 77 gpm |
| Voltage Rating | 208 to 230 VAC |
| Bearing Type | Ball |
| Outlet Size | 1-1/2 in |
| Material | Cast Iron |
| Brand | Liberty Pumps |
