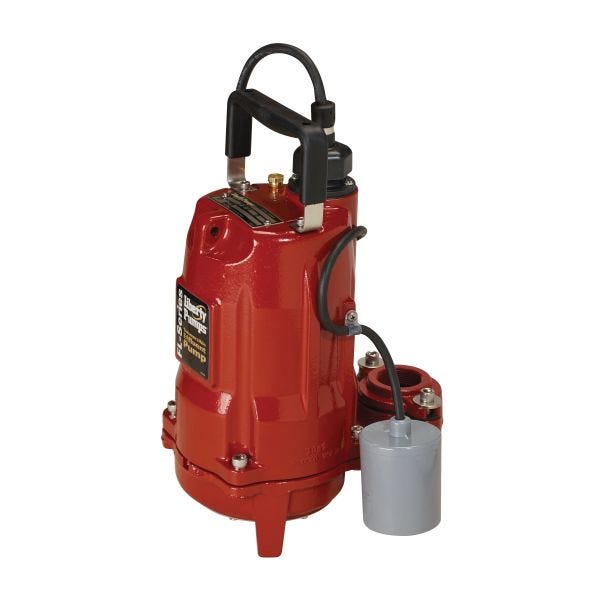

Liberty Pumps FL51A-2
LIBERTY 1/2HP 115V W/25' CORD
SKU
418283
Liberty Pumps®, FL51A-2, Mid-Range Head, Series: FL50, 92 gpm Maximum, 15 ft Rated Head, Automatic/Non Automatic: Automatic, 1-1/2 in FNPT Outlet, 55 ft Maximum Head, 1/2 hp, 115 VAC, 12 A Full Load/48.6 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Cast Iron Multi-Vane Semi-Open Impeller, 248 deg F Thermal Overload, NEMA 4X Enclosure, Ball/Race Bearing, 11.2 in W x 7 in D x 16.4 in H Dimensions
- Semi-open impeller permits passage of solids without clogging
- Cast iron construction with all stainless and brass fasteners
- 416 stainless steel rotor shaft
- Oil filled hermetically sealed motor
- Permanently lubricated upper and lower ball bearings
- Unitized carbon and ceramic shaft seal
- Automatic, series plug
- 25 ft quick connect power cord
- 3/4 in solid handling
- Class B stator winding
- Cast iron impeller and volute
- Buna-N O-ring
- 140 deg F fluid temperature
| Motor Speed | 3450 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Automatic/Non Automatic | Automatic |
| Enclosure Type | NEMA 4X |
| Maximum Flow Rate | 92 gpm |
| Type | Mid-Range Head |
| Rated Head | 15 ft |
| Cord Type | SJTW 25 ft |
| Temperature Rating | 248 deg F Thermal Overload |
| Amperage Rating | 12 A Full Load/48.6 A Locked Rotor |
| Outlet Size | 1-1/2 in FNPT |
| Phase | 1 ph |
| Bearing Type | Ball/Race |
| Maximum Head | 55 ft |
| Dimensions | 11.2 in W x 7 in D x 16.4 in H |
| Impeller Type | Cast Iron Multi-Vane Semi-Open |
| Series | FL50 |
| Material | Cast Iron |
| Horsepower | 1/2 hp |
| Brand | Liberty Pumps |
