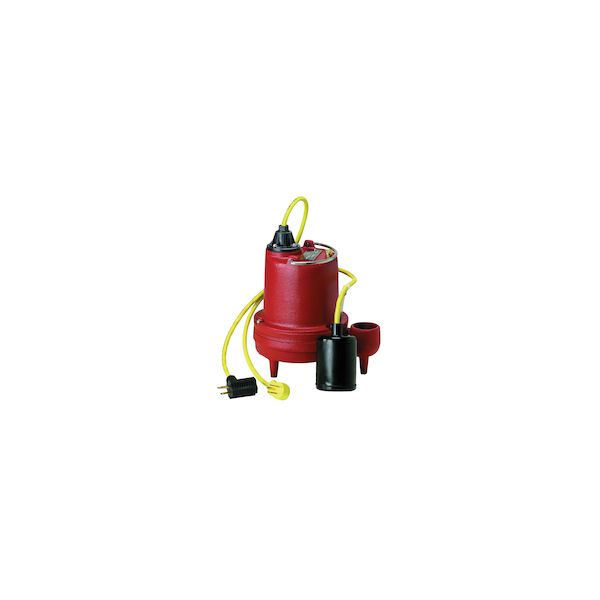

Liberty Pumps HT41A
LIBERTY 4/10HP HIGH TEMP 11/2
SKU
214744
Liberty Pumps®, HT41A, Automatic High Temperature, Series: HT40, 65 gpm Flow Rate, 1-1/2 in FNPT Outlet, 20 ft Maximum Head, 4/10 hp, 115 VAC, 12 A, 60 Hz Frequency, 1 ph, SJEOOW Cord, Vortex Impeller, 302 deg F Thermal Overload, Cast Iron, 9.8 in W x 9.6 in H Dimensions
- Vortex impeller prevents clogging
- Impeller made of high temp thermoplastic
- Cast iron construction
- Stainless steel and brass fasteners
- 416 stainless steel rotor shaft
- Oil filled, thermally protected motor
- Permanently lubricated bearings
- Unitized shaft seal
- 302 deg F thermal overload temperature
- Quick connect power cord
- 3/4 in solid handling
- 23 A locked rotor
| Amperage Rating | 12 A |
|---|---|
| Outlet Size | 1-1/2 in FNPT |
| Material | Cast Iron |
| Impeller Type | Vortex |
| Phase | 1 ph |
| Type | Automatic High Temperature |
| Dimensions | 9.8 in W x 9.6 in H |
| Flow Rate | 65 gpm |
| Voltage Rating | 115 VAC |
| Maximum Head | 20 ft |
| Frequency Rating | 60 Hz |
| Horsepower | 4/10 hp |
| Cord Type | SJEOOW |
| Series | HT40 |
| Temperature Rating | 302 deg F Thermal Overload |
| Brand | Liberty Pumps |
