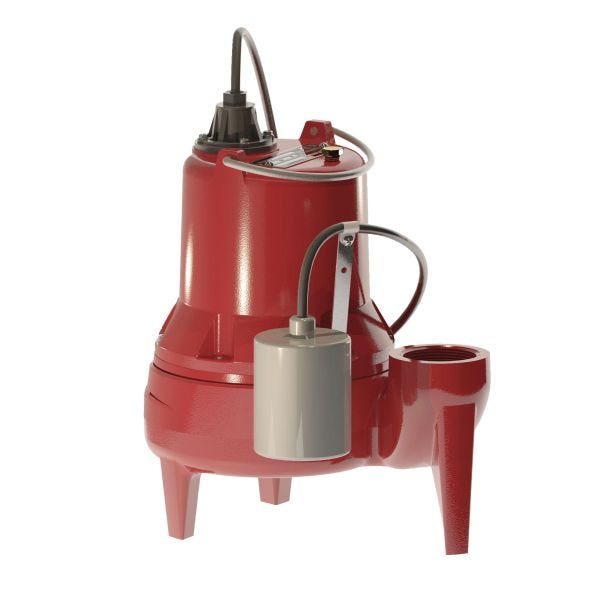

Liberty Pumps LE51A-2
LIBERTY 1/2 SUBMERSIBLE PUMP
SKU
330974
Liberty Pumps®, LE51A-2, Series: LE50, 160 gpm Flow Rate, 2 in FNPT Outlet, 24 ft Maximum Head, 1/2 hp, 115 VAC, 12 A Full Load/22.5 A Locked Rotor, 60 Hz Frequency, 1 ph, 1725 rpm Motor, SJTW 25 ft Cord, 1 Service Factor, Thermoplastic 2-Vane Semi-Open Impeller, Rail System Mounting, 221 deg F Thermal Overload, Ball Bearing, Cast Iron, 11-1/2 in W x 14 in H Dimensions
- Heavy cast iron construction
- Oil filled, thermally protected motor
- Permanently lubricated ball bearings
- Stainless steel fasteners and rotor shaft
- Quick connect 25 ft power cord
- Two wane, corrosion-resistant HYTREL® impeller
| Outlet Size | 2 in FNPT |
|---|---|
| Series | LE50 |
| Horsepower | 1/2 hp |
| Flow Rate | 160 gpm |
| Motor Speed | 1725 rpm |
| Frequency Rating | 60 Hz |
| Amperage Rating | 12 A Full Load/22.5 A Locked Rotor |
| Material | Cast Iron |
| Service Factor | 1 |
| Phase | 1 ph |
| Voltage Rating | 115 VAC |
| Mounting Type | Rail System |
| Bearing Type | Ball |
| Maximum Head | 24 ft |
| Impeller Type | Thermoplastic 2-Vane Semi-Open |
| Temperature Rating | 221 deg F Thermal Overload |
| Dimensions | 11-1/2 in W x 14 in H |
| Cord Type | SJTW 25 ft |
| Brand | Liberty Pumps |
