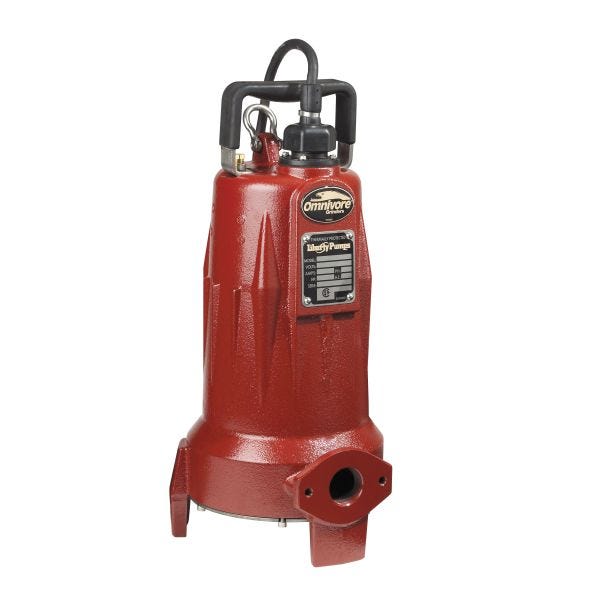

Liberty Pumps LSG202M
2HP GRINDER MAN 208-230V 1PH
SKU
335197
Liberty Pumps®, LSG202M, 1-Stage, Series: LSG200, 50 gpm Maximum, 10 ft Rated Head, Automatic/Non Automatic: Non-Automatic, 1-1/4 in FNPT Outlet, 110 ft Maximum Head, 2 hp, 208 to 230 VAC, 15 A Full Load/53 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJOOW 25 ft Cord, 1 Service Factor, 300 Stainless Steel Impeller, 221 deg F Thermal Overload, Single Ball/Race Upper or Heavy Duty Ball/Race Lower Bearing, Fiberglass
- One-piece unit body casting
- 300 Series SS rotor shaft
- Quick connect 25 ft power cord
- The Omnivore® by Liberty Pumps® is the industry's newest 2 hp grinder pump with new V-Slice® Cutter Technology
- The hardened stainless steel cutting system provides in excess of 300000 cuts/min and aggressively shreds jeans, shop rags, diapers, sanitary napkins and other difficult solids into a fine slurry
- A unique open volute design eliminates the cutwater improving solids flow and reducing potential jamming of material in the volute
- Capacitors are integral to the pump, eliminating the need for an expensive control panel
- Complete pre-assembled grinder system
| Material | Fiberglass |
|---|---|
| Service Factor | 1 |
| Outlet Size | 1-1/4 in FNPT |
| Cord Type | SJOOW 25 ft |
| Motor Speed | 3450 rpm |
| Series | LSG200 |
| Bearing Type | Single Ball/Race Upper or Heavy Duty Ball/Race Lower |
| Rated Head | 10 ft |
| Frequency Rating | 60 Hz |
| Type | 1-Stage |
| Horsepower | 2 hp |
| Maximum Flow Rate | 50 gpm |
| Maximum Head | 110 ft |
| Impeller Type | 300 Stainless Steel |
| Automatic/Non Automatic | Non-Automatic |
| Temperature Rating | 221 deg F Thermal Overload |
| Amperage Rating | 15 A Full Load/53 A Locked Rotor |
| Voltage Rating | 208 to 230 VAC |
| Phase | 1 ph |
| Brand | Liberty Pumps |
