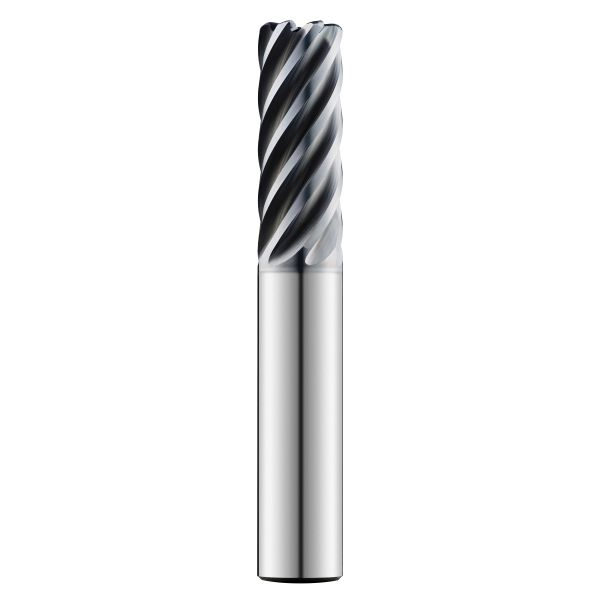

SGS® H-Carb Corner Radius End Mill, High Efficiency Metric, Series: 77MCR, 6 mm Diameter Cutter, 0.3 mm Corner Radius, 75 mm Overall Length, 24 mm Length of Cut, 7 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Straight Shank, Solid Carbide, Ti-Namite-A Coated
- Heavy duty core and specialized flute design for improved rigidity, chip flow and reduced deflection
- Deep pocketing and slotting capability using the various lengths of cut offered applying a trochoidal tool path
- CAM programming methods using high efficiency machining by applying trochoidal tool paths and incorporating constant cutter engagement
- Open center design delivers efficiency during entry movements into the workpiece
- Specially engineered gash provides increased strength at the end of the tool
- The innovative 7-flute design allows for higher feed rates, decreasing cycle time and improving productivity
- The variable flute indexing provides advanced chatter suppression
- Optimized helix angle provides enhanced shearing capabilities
- The coating has a high hardness giving ultimate protection against abrasive wear and erosion, Ideal for high temperature alloys and stainless steel applications
- Ti-Namite-A coating for superior wear, edge build-up resistance and extended tool life in dif cult to machine materials like stainless steel
- Optimized core improves rigidity, chip flow and reduces deflection
| Series | 77MCR |
|---|---|
| Length of Cut | 24 mm |
| Corner Radius | 0.3 mm |
| Number of Flutes | 7 |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Capacity | 1 L |
| Shank Diameter | 6 mm |
| Flute Type | Spiral |
| Helix Angle | 37 deg |
| Cutter Diameter | 6 mm |
| Finish | Ti-Namite-A Coated |
| Type | High Efficiency Metric |
| Material | Solid Carbide |
| Overall Length | 75 mm |
| Brand | Diversitech |
