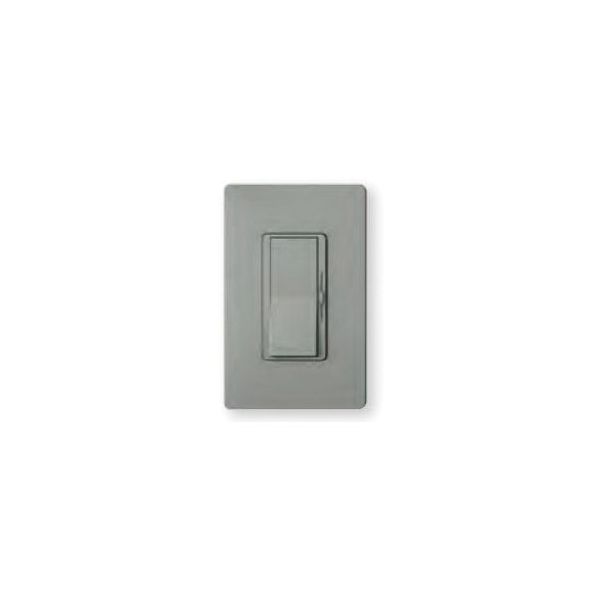

Diva DVSTV-GR

8A 3WAY GRAY WALL CONTROL
SKU
764413
The product cannot be delivered by Truck Shipping

Diva® Dimmer Switch, 3-Way, Series: DVSTV, 120 to 277 VAC, 8 A, 50 mA, 50/60 Hz Frequency, 1 Pole, Fluorescent/LED Lamp, Preset Start, Operation Mode: On/Off, Paddle/Slide Control, Class 1 Insulation, NEMA 4/10 Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, Plastic, Gray, 4.69 in H x 2.94 in W x 0.3 in D Dimensions

  • 0-10 V control link controls third party fixtures
  • Patented switching technology extends product lifetime
  • Works with all ballasts and drivers that provide a current source compliant to IEC 60629 Annex E.2, and whose inrush current does not exceed NEMA410 standards for electronic ballast/driver loads of 8 A steady state current
  • Adjustable high-end and low end trim for optimal dimming performance
  • Power failure memory should power be interrupted, the control will return to its previously set level prior to the interruption when power is restored
  • Captive linear slider
  • Precise color matching
  • For indoor use only
  • Gloss finish
More Information
Lamp Type Fluorescent/LED
Dimensions 4.69 in H x 2.94 in W x 0.3 in D
Voltage Rating 120 to 277 VAC
Series DVSTV
Insulation Class 1
Start Type Preset
Temperature Rating 32 to 104 deg F
Frequency Rating 50/60 Hz
Enclosure Type NEMA 4/10
Color Gray
Type 3-Way
Number of Poles 1
Material Plastic
Terminal Type Screw
Amperage Rating 8 A, 50 mA
Mounting Type Wall
Operation Mode On/Off
Control Paddle/Slide
Brand Lutron
Amperage 8 Amp
Type Dimmer
Color Grey
