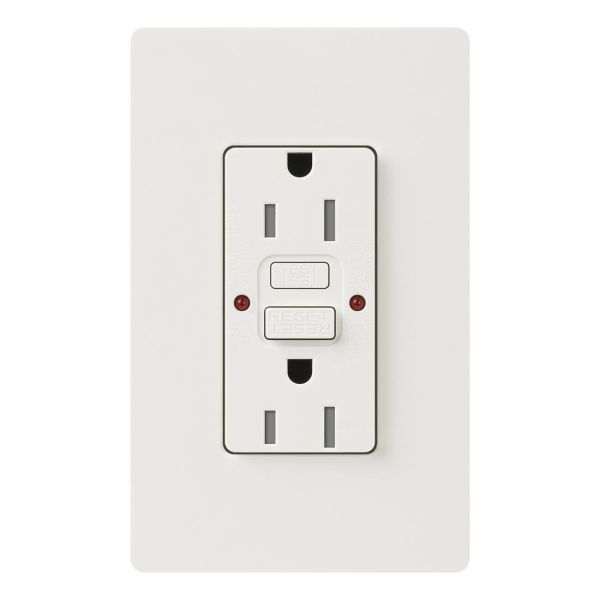

Lutron SCR-15-GFST-SW

Lutron® Claro® Satin Colors® GFCI Receptacle, Designer Style Self-Testing Tamper-Resistant, Series: SCR-15-GFST, 125 VAC, 15 A, 60 Hz Frequency, -30 to 150 deg F, Back/Side Wire Terminal, Snow, 4.69 in H x 2.94 in W x 1.47 in D Dimensions

• Three provisions for providing protection:- continuous electronic sensing, testing and evaluation utilizing diagnostic software located on the printed circuit board
• Traditional testing mode by manually operating the "test and reset" buttons utilizing a supervisory circuit as specified in UL 943 section 5.15
• Continuous self-test functionality, disconnects power to receptacle if critical components are damaged and GFCI protection is lost, providing "continuous self-testing" that initiates within 2.5 sec and is a continuous cycle every 30 sec or less
• Auto-sensing mode for immediate interruption for a ground fault condition for class A protection (4 to 6 mA)
• Manual test, this design incorporates a full system test function, the GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board, this in turn causes the mechanical system to react based on the action of the
• The entire mechanical and electronic GFCI system is reviewed for functionality
• Reverse wire safety feature, if wired incorrectly there will be no power to the face or to downstream receptacles for added safety
• Clear visual indication of GFCI status, LED indicating lights:- green LED (power to the device), red LED (trip condition/ground fault condition), flashing red LED (end of life)
• Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device
• Internal back wiring clamp and guide, pocket quick and dependable termination
• Receptacle face compatible with NEMA designer and Nova T® designer opening wallplates
