M.A. Ford 27217000
*6" CEILING SHOWER ARM CH
SKU
405415

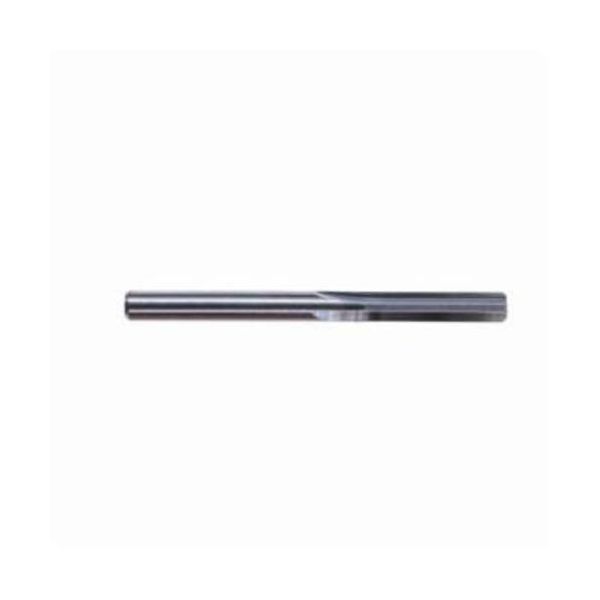

M.A. Ford® TrueSize® Chucking Reamer, Series: 272, 0.17 in Diameter, 2-3/4 in Overall Length, Straight Shank, 0.166 in Shank Diameter, 4 Flutes, Straight Flute, 7/8 in Flute Length, Carbide, Uncoated, Right Hand Cutting Direction, Applicable Materials: Steel, Stainless Steel, Hardened Steel, Cast Iron, Special Alloy and Non-Ferrous Metal
- Right hand cutting with a 45 deg lead cutting angle
- Well suited for ferrous metals and many non-ferrous and non-metallic materials
- Straight helix
- +0.0001/+0.0003 in tolerance D1
- +0.000/-0.001 in tolerance D2
- +/-1/16 in tolerance L1, L2
| Material | Carbide |
|---|---|
| Flute Type | Straight |
| Cutting Direction | Right Hand |
| Flute Length | 7/8 in |
| Applicable Materials | Steel, Stainless Steel, Hardened Steel, Cast Iron, Special Alloy and Non-Ferrous Metal |
| Shank Type | Straight |
| Overall Length | 2-3/4 in |
| Number of Flutes | 4 |
| Shank Diameter | 0.166 in |
| Series | 272 |
| Finish | Uncoated |
| Diameter | 0.17 in |
| Brand | Grohe |
