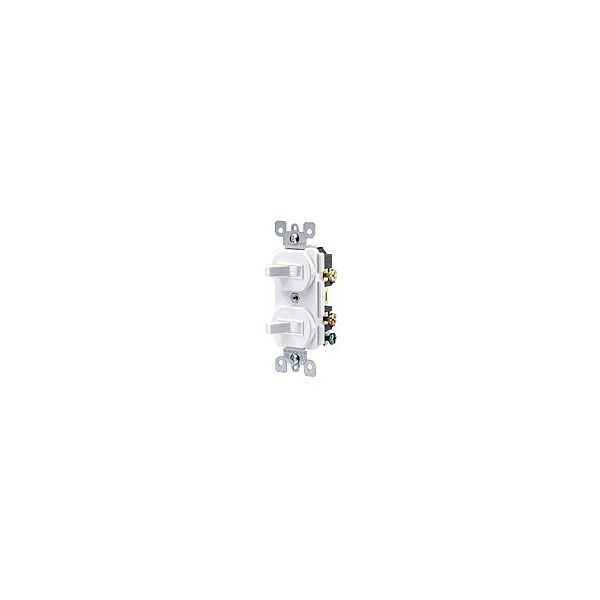

Leviton 5224-2W
COMB-2SP 15A277 AC SW
SKU
701970
Leviton® AC Combination Switch, Duplex Grounding, 15 A, 125 VAC, 1800 W Electrical Rating, 1 Pole, 15 A at 120/277 VAC Contact, NEMA 5-15R Enclosure, Surface/Wall Plate Mounting, 4.2 in H x 1.62 in W x 16 in D Size, 100 Cycles Operating Cycles, Environmental Conditions: -40 to 120 deg C Operating Temperature, Thermoplastic, White
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screw accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes
- Break-OFF tabs on devices with switches permit conversion to separate feeds
- Steel strap and thermoplastic toggle actuator
- Side wired terminal
- Dielectric voltage withstands 1500 VAC for 1 min
| Power Rating | 32 to 60 W |
|---|---|
| Voltage Rating | 120 VAC |
| Operating Cycles | 100 Cycles |
| Overall Length | 50 in |
| Domestic/Import | Import |
| Temperature Rating | 0 to 50 deg F |
| Mounting | Surface/Wall Plate |
| Environmental Conditions | -40 to 120 deg C Operating Temperature |
| Size | 4.2 in H x 1.62 in W x 16 in D |
| Contact Rating | 15 A at 120/277 VAC |
| Color | White |
| Type | Duplex Grounding |
| Number of Poles | 1 |
| Material | Thermoplastic |
| Electrical Ratings | 15 A, 125 VAC, 1800 W |
| Enclosure | NEMA 5-15R |
| Brand | Leviton Mfg |
| Amperage | 15 Amp |
| Type | Switches & Switches |
| Voltage | 120/277V |
| Color | white |
