3M 7000133400
42714 INSULATED FEMALE DISCONN
SKU
701357

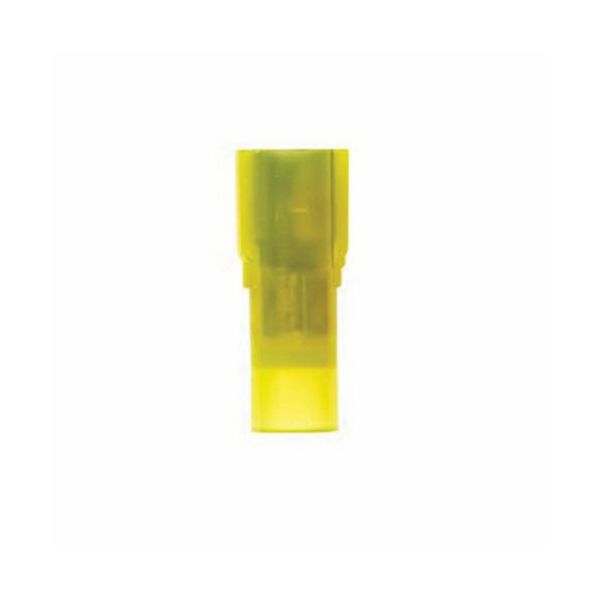

3M™, 7000133400, Disconnect Terminal, Insulated, 12 to 10 AWG Conductor, 1/4 in Tab, 0.128 in ID x 0.25 in L Interlocking Barrel, 600 VAC, Specifications: 0.99 in OAL, -40 to 221 deg F, ETP Copper/Nylon, Yellow, 0.25 in W x 0.032 in THK Pad Dimensions, Insulated: Yes
- Attached to mating part by tongue of female part slipping over male tab
- Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect
- 0.145 in OD nylon insulated, female connection
- Color coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect
- The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 deg F (-40 to 105 deg C)
- Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion
| Temperature Rating | -40 to 221 deg F |
|---|---|
| Insulated | Yes |
| Color | Yellow |
| Dimensions | 0.25 in W x 0.032 in THK Pad |
| Specifications | 0.99 in OAL |
| Conductor Size | 12 to 10 AWG |
| Voltage Rating | 600 VAC |
| Barrel Type | 0.128 in ID x 0.25 in L Interlocking |
| Material | ETP Copper/Nylon |
| Tab Size | 1/4 in |
| Brand | 3M |
