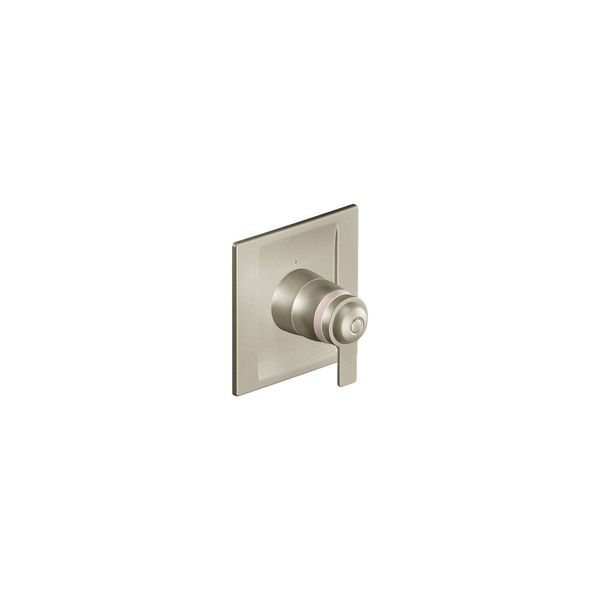

Moen TS3100BN
*90 DEGREE THERM TRIM BR NICK
SKU
529184
Moen® Valve Trim Only, Series: TS3100, 90 Degree™ Collection, Lever Handle, 6-7/16 in H Trim, Thermostatic Ceramic Cartridge, Hand Shower: No, 70 to 120 deg F, Wall Mounting, For Use With: ExactTemp® S3371 3/4 in IPS Thermostatic Valve, Metal, Brushed Nickel, 6.63 in W x 4.5 in D x 6.63 in H Dimensions, Import
- Lever handle makes it easy to adjust the water
- ExactTemp® thermostatic valve allows you to dial in and maintain your ideal temperature for more precise temperature control
- Built on the Moen M-PACT® common valve system allowing you to update the faucet style in the future without replacing any plumbing
- Metal construction with various finishes identified by suffix
- Flow lever operates counterclockwise through a 90 deg arc with shut-off at 6 o'clock and max flow at the 3 o'clock position, shut-off in clockwise direction
- Shut off in clockwise direction
- Temperature lever operates through a 340 deg arc with maximum cold at full clockwise rotation and max hot at full counterclockwise rotation
- Brushed nickel finish brings the warm look of stainless to your bath
- LifeShine® finish assures the ultimate in durability and is guaranteed not to tarnish, corrode or flake off
- Without valve
| Mounting Type | Wall |
|---|---|
| Handle Type | Lever |
| Finish/Color | Brushed Nickel |
| Material | Metal |
| Domestic/Import | Import |
| Series | TS3100 |
| Hand Shower Yes/No | No |
| Trim Size | 6-7/16 in H |
| Valve/Cartridge Type | Thermostatic Ceramic Cartridge |
| Collection | 90 Degree™ |
| Temperature Rating | 70 to 120 deg F |
| Dimensions | 6.63 in W x 4.5 in D x 6.63 in H |
| Suitable For Use With | ExactTemp® S3371 3/4 in IPS Thermostatic Valve |
| Brand | Moen |
