MORRIS 01332
FEMALE DISCONNECT 12-10
SKU
681585

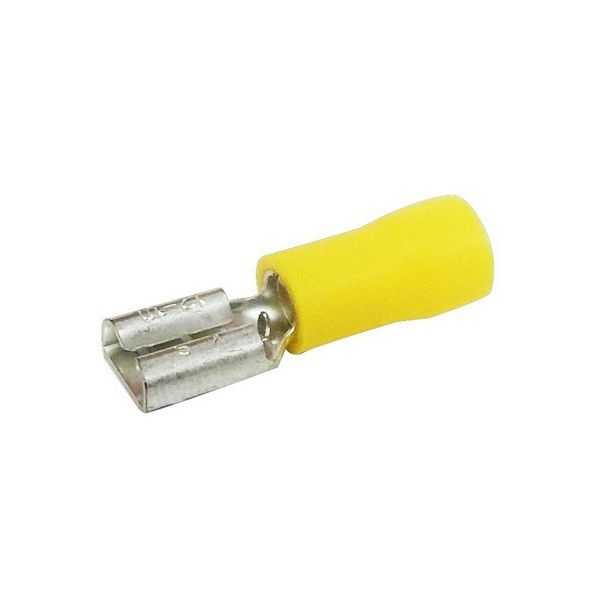

MORRIS Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.032 x 0.25 in Tab, Butted Seam/Serrated Barrel, Crimp Terminal, 300 VAC, 0.016 in THK Wall, 0.134 in ID x 0.217 in OD x 0.512 in L Barrel, 167 deg F, Brass, Yellow, Electroplated Tin, 0.925 in L x 0.26 in W, Insulated: Insulated
- Vinyl color-coded insulation for easy identification
- Electro-tin plated for corrosion resistance
- Easy entry expanded insulation eliminates strand hang up, increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Serrated barrel provides excellent electrical contact and resistance to pull-out forces
- 20 A at 12 AWG to 24 A at 10 AWG maximum current
| Temperature Rating | 167 deg F |
|---|---|
| Insulated | Insulated |
| Color | Yellow |
| Dimensions | 0.925 in L x 0.26 in W |
| Specifications | 0.016 in THK Wall, 0.134 in ID x 0.217 in OD x 0.512 in L Barrel |
| Conductor Size | 12 to 10 AWG |
| Voltage Rating | 300 VAC |
| Barrel Type | Butted Seam/Serrated |
| Terminal Type | Crimp |
| Material | Brass |
| Finish | Electroplated Tin |
| Tab Size | 0.032 x 0.25 in |
| Brand | Morris |
