MORRIS 01162
STEEL CRIMP CONN. 18 - 10 AWG
SKU
860982

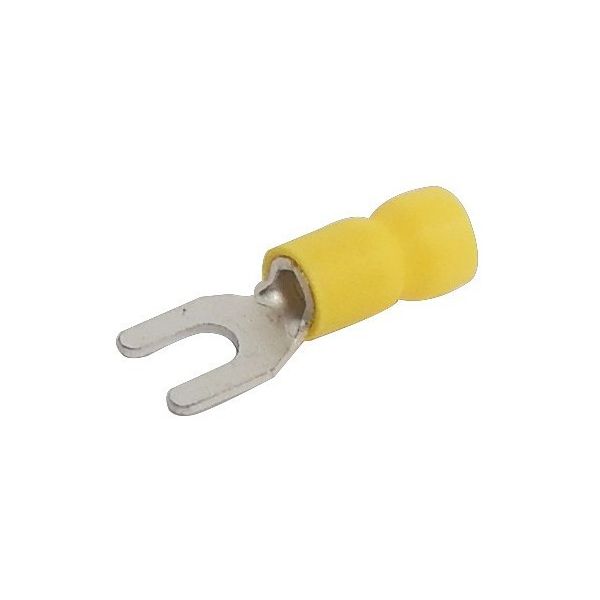

MORRIS Fork/Spade Terminal, Insulated, 12 to 10 AWG Conductor, #8 Stud, 1.047 in Length, Butted Seam/Serrated Barrel, 0.248 in Dia x 0.555 in L Barrel, Fork/Spade Tongue, 0.354 in W x 0.039 in THK Tongue, 600 VAC, 167 deg F, Copper Alloy, Electro-Plated Tin, Yellow
- Fork/spade terminals are vinyl insulated
- Color-coded insulation for easy identification
- Electro tin plated for corrosion resistance
- Easy entry expanded insulation eliminates strand hang up, increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Serrated barrel provides excellent electrical contact and resistance to pull-out forces
- 35 A at 12 AWG to 50 A at 10 AWG maximum current
- 25Pack
- Manufactured from high strength electrolytic Copper Alloy
| Temperature Rating | 167 deg F |
|---|---|
| Color | Yellow |
| Barrel Size | 0.248 in Dia x 0.555 in L |
| Conductor Size | 12 to 10 AWG |
| Length | 1.047 in |
| Stud Size | #8 |
| Voltage Rating | 600 VAC |
| Barrel Type | Butted Seam/Serrated |
| Tongue Size | 0.354 in W x 0.039 in THK |
| Tongue Type | Fork/Spade |
| Material | Copper Alloy |
| Type | Insulated |
| Finish | Electro-Plated Tin |
| Brand | Morris |
