MORRIS 01186
TAN WING CONNECTOR BOXED
SKU
682878

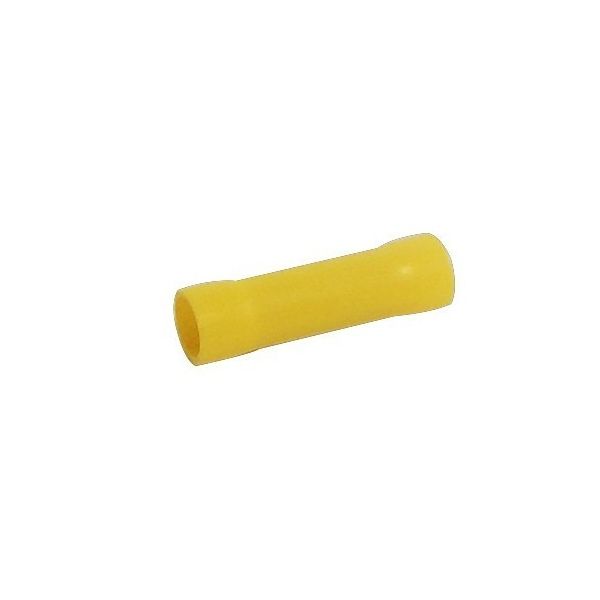

MORRIS Butt Splice Terminal, 12 to 10 AWG Conductor, 1.043 in Length, Butted Seam Barrel, 0.248 in OD Barrel, 600 VAC, 35 to 50 A Maximum Electric Current, Vinyl Insulated, 167 deg F, Electrolytic Copper Alloy, Yellow, Electro-Plated Tin, 0.134 in ID
- Color-coded insulation for easy identification
- Electro tin plated for corrosion resistance
- Easy entry expanded insulation eliminates strand hang up, increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Butted seam prevent splitting under maximum pressure
- Crimping barrel and flared position of sleeves provide excellent contact and mechanical stress relief at insulation and barrel junction
- Packed in zip lock plastic bags with punched hole for pegboard hanging
- Restock your supplies with these Vinyl Insulated Butt Splices
- Manufactured from high strength electrolytic Copper Alloy
| Temperature Rating | 167 deg F |
|---|---|
| Color | Yellow |
| Dimensions | 0.134 in ID |
| Specifications | 35 to 50 A Maximum Electric Current, Vinyl Insulated |
| Barrel Size | 0.248 in OD |
| Conductor Size | 12 to 10 AWG |
| Length | 1.043 in |
| Voltage Rating | 600 VAC |
| Barrel Type | Butted Seam |
| Material | Electrolytic Copper Alloy |
| Finish | Electro-Plated Tin |
| Brand | Morris |
