MORRIS 10066

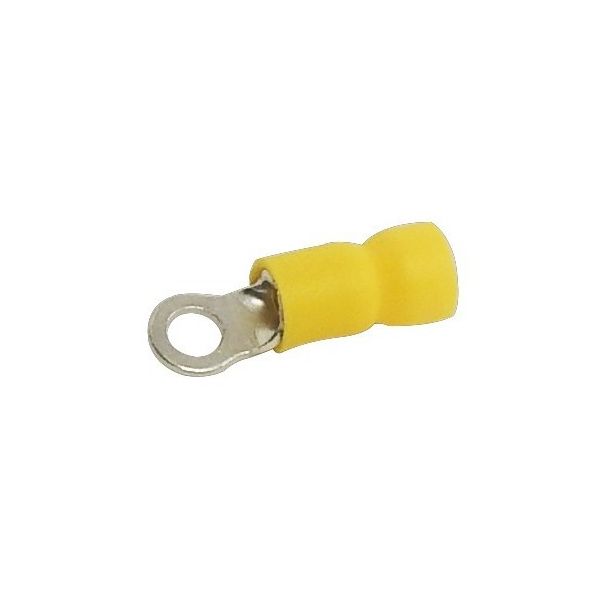

MORRIS Ring Terminal, 12 to 10 AWG Conductor, 1/4 in Stud, Serrated Barrel, 600 VAC, 35 A at 12 AWG, 50 A at 10 AWG, Vinyl Insulated, 167 deg F, Electrolytic Copper Alloy, Tin Electroplated, Yellow

• Color coded insulation for easy identification
• Manufactured from high strength copper alloy
• Electro tin plated for corrosion resistance
• Easy entry expanded insulation eliminates strand "hang up", increases the crimping rates and the reliability of the termination|Wire range stamped on the surface for easy interpretation|Butted seams prevent splitting under maximum pressure|Serrated barrel and flared position of sleeves provide excellent contact and mechanical stress relief at insulation and barrel junction|Packed in zip lock plastic bags with punched hole for pegboard hanging|Maximum electrical current, 22 AWG - 9 A, 20 AWG - 12 A, 18 AWG - 17 A, 16 AWG - 18 A, 14 AWG - 30 A, 12 AWG - 35 A, 10 AWG - 50 A
• Wire range stamped on the surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Serrated barrel and flared position of sleeves provide excellent contact and mechanical stress relief at insulation and barrel junction
• Packed in zip lock plastic bags with punched hole for pegboard hanging
• Maximum electrical current, 22 AWG - 9 A, 20 AWG - 12 A, 18 AWG - 17 A, 16 AWG - 18 A, 14 AWG - 30 A, 12 AWG - 35 A, 10 AWG - 50 A
