MORRIS 97113
#2-14 BLK INSUL CONN DUAL
SKU
835508

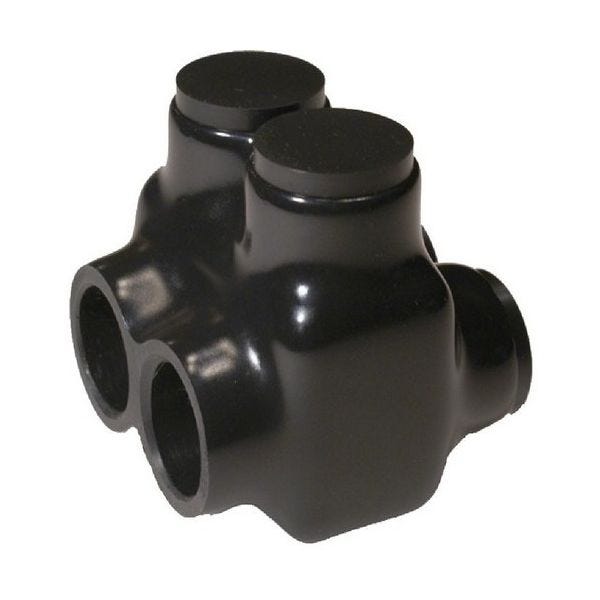

MORRIS Mechanical Insulated Connector, 2-Conductor Dual Entry, Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 600 VAC, Slotted Allen Hex, Black PVC Insulation, -49 to 194 deg F, 6061-T6 Aluminum, 1.15 in L x 1.5 in W x 1.42 in H
- Dual entry insulated connector is 6061-T6 aluminum CU9AL dual-rated for use with copper and/or aluminum wires
- Insulated connector has rugged high dielectric rubber/vinyl coating
- Pre-filled with oxide inhibitor
- Easy re-entry for changes, inspection or troubleshooting
- Plugs marked with connector max wire size for easy identification
- 1-wire per terminal
- 2Conductor Dual Entry Insulated Connector for low cost installations
- Optional wire entry from either side
| Temperature Rating | -49 to 194 deg F |
|---|---|
| Dimensions | 1.15 in L x 1.5 in W x 1.42 in H |
| Specifications | Slotted Allen Hex, Black PVC Insulation |
| Conductor Size | 14 to 2 AWG |
| Voltage Rating | 600 VAC |
| Conductor Type | Aluminum/Copper |
| Material | 6061-T6 Aluminum |
| Type | 2-Conductor Dual Entry |
| Brand | Morris |
