MORRIS 97519
#4-3 BLK INSUL CONN SGL
SKU
835510

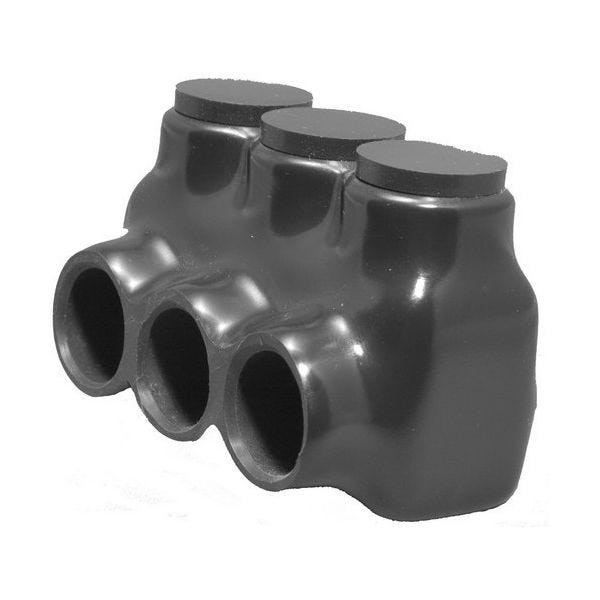

MORRIS Mechanical Insulated Connector, Multi-Cable Single Entry, Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 600 VAC, 3-Port, Slotted Allen Hex, Black PVC Insulation, -49 to 194 deg F, 6061-T6 Aluminum, 1.6 in L x 1.5 in H
- Wires enter the same side of the connector
- Insulated with rugged high dielectric rubber/vinyl coating
- Pre-filled with oxide inhibitor
- Single side entry cable connector is 6061-T6 aluminum CU9AL dual-rated for use with copper and/or aluminum wires
- Easy re-entry for changes, inspection or troubleshooting
- Plugs marked with connector max wire size for easy identification
- 1-wire per terminal
- Rated for use with 194 deg F cables
- Single Side Entry Cable Connector simplifies cable splicing and tapping applications
| Temperature Rating | -49 to 194 deg F |
|---|---|
| Dimensions | 1.6 in L x 1.5 in H |
| Specifications | 3-Port, Slotted Allen Hex, Black PVC Insulation |
| Conductor Size | 14 to 2 AWG |
| Voltage Rating | 600 VAC |
| Conductor Type | Aluminum/Copper |
| Material | 6061-T6 Aluminum |
| Type | Multi-Cable Single Entry |
| Brand | Morris |
