MORRIS 01068
STD CABLE TIE 18LB 8
SKU
682311

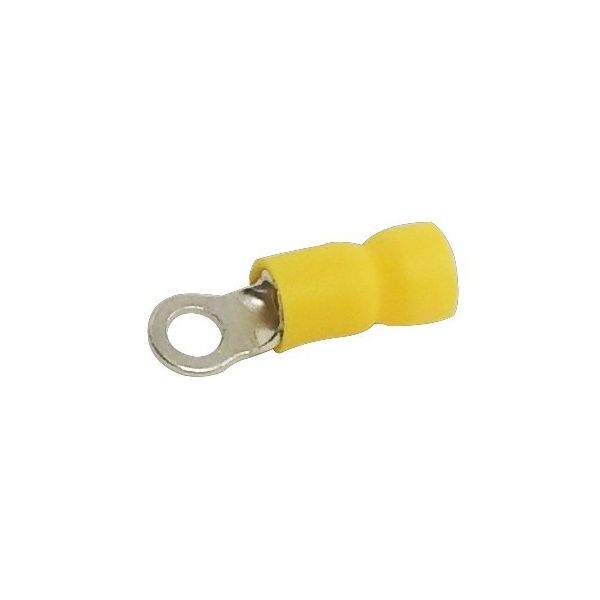

MORRIS Ring Terminal, 12 to 10 AWG Conductor, 5/16 in Stud, 1.382 in Length, Butted Seam/Serrated Barrel, 0.248 in Dia x 0.555 in L Barrel, Ring Tongue, 0.591 in W x 0.039 in THK Tongue, 600 VAC, 35 to 50 A, Vinyl Insulated, 167 deg F, Copper, Electro-Plated Tin, Yellow
- Color coded insulation for easy identification
- Manufactured from high strength copper alloy
- Electro-plated tin for corrosion resistance
- Easy entry expanded insulation eliminates strand "hang up", increasing crimping rates and provides mechanical strain relief|Wire range stamped on the surface for easy interpretation|Serrated barrel provides excellent electrical contact and resistance to pull out forces|Ring style wiring terminals are quick and easy to use
- Wire range stamped on the surface for easy interpretation
- Serrated barrel provides excellent electrical contact and resistance to pull out forces
- Ring style wiring terminals are quick and easy to use
| Voltage Rating | 600 VAC |
|---|---|
| Specifications | 35 to 50 A, Vinyl Insulated |
| Length | 1.382 in |
| Tongue Type | Ring |
| Material | Copper |
| Finish | Electro-Plated Tin |
| Stud Size | 5/16 in |
| Temperature Rating | 167 deg F |
| Color | Yellow |
| Barrel Size | 0.248 in Dia x 0.555 in L |
| Conductor Size | 12 to 10 AWG |
| Tongue Size | 0.591 in W x 0.039 in THK |
| Barrel Type | Butted Seam/Serrated |
| Brand | Morris |
