MORRIS 01224
12-10 .250X.032 VIN FEM
SKU
681506

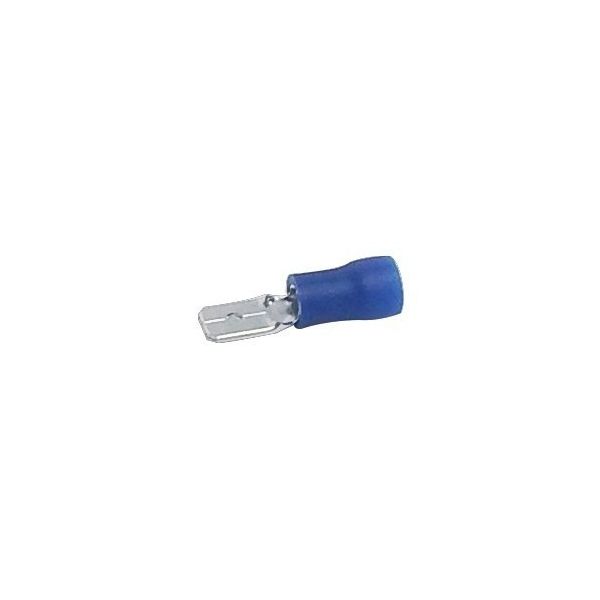

MORRIS Male Disconnect Terminal, Insulated, 16 to 14 AWG Conductor, 0.032 x 0.25 in Tab, Butted Seam/Serrated Barrel, Crimp Terminal, 300 VAC, Specifications: 0.016 in Wall THK, 0.091 in ID x 0.177 in OD x 0.394 in L Barrel, 167 deg F, Brass, Blue, Electro-Plated Tin, 0.827 in L x 0.25 in W Dimensions
- Vinyl color-coded insulation for easy identification
- Electro tin plated for corrosion resistance
- Easy entry expanded insulation eliminates strand hang up, increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Serrated barrel provides excellent electrical contact and resistance to pull-out forces
- 10 A at 16 AWG to 15 A at 14 AWG maximum current
- 25Pack
- A refill pack of Vinyl Insulated Male Disconnects
| Temperature Rating | 167 deg F |
|---|---|
| Color | Blue |
| Dimensions | 0.827 in L x 0.25 in W |
| Specifications | 0.016 in Wall THK, 0.091 in ID x 0.177 in OD x 0.394 in L Barrel |
| Conductor Size | 16 to 14 AWG |
| Voltage Rating | 300 VAC |
| Barrel Type | Butted Seam/Serrated |
| Terminal Type | Crimp |
| Material | Brass |
| Type | Insulated |
| Finish | Electro-Plated Tin |
| Tab Size | 0.032 x 0.25 in |
| Brand | Morris |
