MORRIS 10134
COPPER CRIMP SLEEVE 14-8
SKU
682676

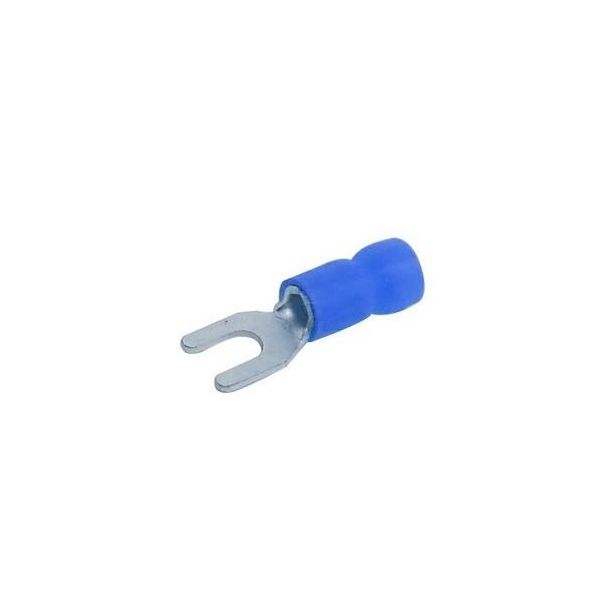

MORRIS Fork/Spade Terminal, Insulated, 16 to 14 AWG Conductor, #8 Stud, 0.886 in Length, Butted Seam/Serrated Barrel, 0.177 in Dia x 0.453 in L Barrel, Fork/Spade Tongue, 0.311 in W x 0.031 in THK Tongue, 600 VAC, 0.091 in Dia Wire, 105 deg C, Copper, Electro-Plated Tin, Blue
- Fork/spade terminals are vinyl insulated
- Color-coded insulation for easy identification
- Electro tin plated for corrosion resistance
- Easy entry expanded insulation eliminates strand hang-up, increasing crimping rates and the reliability of the termination
- Wire range stamped on the surface for easy interpretation
- Butted seam prevent splitting under maximum pressure
- Serrated barrel and flared insulation sleeve provides excellent contact and mechanical stress relief at insulation and barrel junction
- 18 A at 16 AWG to 30 A at 14 AWG maximum current
| Conductor Size | 16 to 14 AWG |
|---|---|
| Length | 0.886 in |
| Type | Insulated |
| Color | Blue |
| Voltage Rating | 600 VAC |
| Specifications | 0.091 in Dia Wire |
| Barrel Type | Butted Seam/Serrated |
| Tongue Size | 0.311 in W x 0.031 in THK |
| Barrel Size | 0.177 in Dia x 0.453 in L |
| Finish | Electro-Plated Tin |
| Temperature Rating | 105 deg C |
| Stud Size | #8 |
| Tongue Type | Fork/Spade |
| Material | Copper |
| Brand | Morris |
