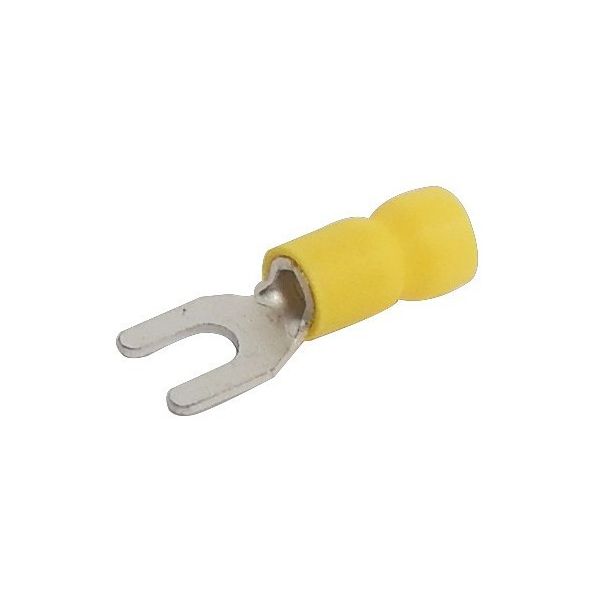

MORRIS Fork/Spade Terminal, Insulated, 12 to 10 AWG Conductor, #10 Stud, 1.047 in Length, Butted Seam/Serrated Barrel, 0.248 in Dia x 0.555 in L Barrel, Fork/Spade Tongue, 0.354 in W x 0.039 in THK Tongue, 600 VAC, 0.134 in Dia Wire, 105 deg C, Copper, Electro-Plated Tin, Yellow
- Fork/spade terminals are vinyl insulated
- Color-coded insulation for easy identification
- Electro tin plated for corrosion resistance
- Easy entry expanded insulation eliminates strand hang-up, increasing crimping rates and the reliability of the termination
- Wire range stamped on the surface for easy interpretation
- Butted seam prevent splitting under maximum pressure
- Serrated barrel and flared insulation sleeve provides excellent contact and mechanical stress relief at insulation and barrel junction
- 35 A at 12 AWG to 50 A at 10 AWG maximum current
| Temperature Rating | 105 deg C |
|---|---|
| Color | Yellow |
| Specifications | 0.134 in Dia Wire |
| Barrel Size | 0.248 in Dia x 0.555 in L |
| Conductor Size | 12 to 10 AWG |
| Length | 1.047 in |
| Stud Size | #10 |
| Voltage Rating | 600 VAC |
| Barrel Type | Butted Seam/Serrated |
| Tongue Size | 0.354 in W x 0.039 in THK |
| Tongue Type | Fork/Spade |
| Material | Copper |
| Type | Insulated |
| Finish | Electro-Plated Tin |
| Brand | Morris |
