MORRIS 10182

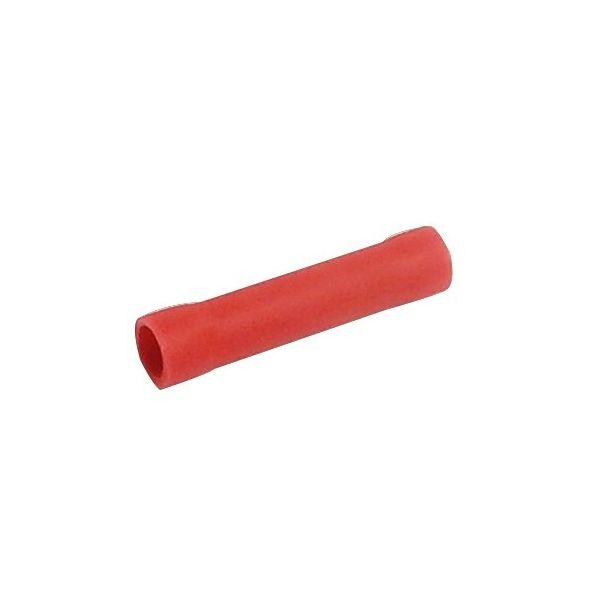

MORRIS Butt Splice Connector, Insulated, 22 to 16 AWG Conductor, 0.986 in Length, 600 VAC, 9 A at 22 AWG, 18 A at 16 AWG, Vinyl Insulated, 75 deg C, Copper, Red, Tin Electro-Plated, 0.986 in D

• Restock your vinyl insulated butt splice connectors with us
• Color coded insulation for easy identification
• Manufactured from high strength copper alloy
• Easy entry expanded insulation eliminates strand "hang up", increases the crimping rates and the reliability of the termination|Wire range stamped on the surface for easy interpretation|Butted seams prevent splitting under maximum pressure|Funneled barrel and flared insulation sleeve provides excellent contact and mechanical stress relief at insulation and barrel junction|Electro tin plated for corrosion resistance|Maximum electric current, 26 AWG - 5.5 A, 24 AWG - 7 A, 22 AWG - 9 A, 20 AWG - 12 A, 18 AWG - 17 A, 16 AWG - 18 A, 14 AWG - 30 A, 12 AWG - 35 A, 10 AWG - 50 A, 8 AWG - 70 A, 6 AWG - 95 A, 4 AWG - 125 A, 2 AWG - 170 A
• Wire range stamped on the surface for easy interpretation
• Butted seams prevent splitting under maximum pressure
• Funneled barrel and flared insulation sleeve provides excellent contact and mechanical stress relief at insulation and barrel junction
• Electro tin plated for corrosion resistance
• Maximum electric current, 26 AWG - 5.5 A, 24 AWG - 7 A, 22 AWG - 9 A, 20 AWG - 12 A, 18 AWG - 17 A, 16 AWG - 18 A, 14 AWG - 30 A, 12 AWG - 35 A, 10 AWG - 50 A, 8 AWG - 70 A, 6 AWG - 95 A, 4 AWG - 125 A, 2 AWG - 170 A
