MORRIS 10314
12-10 #10 VINYL RING SM
SKU
681475

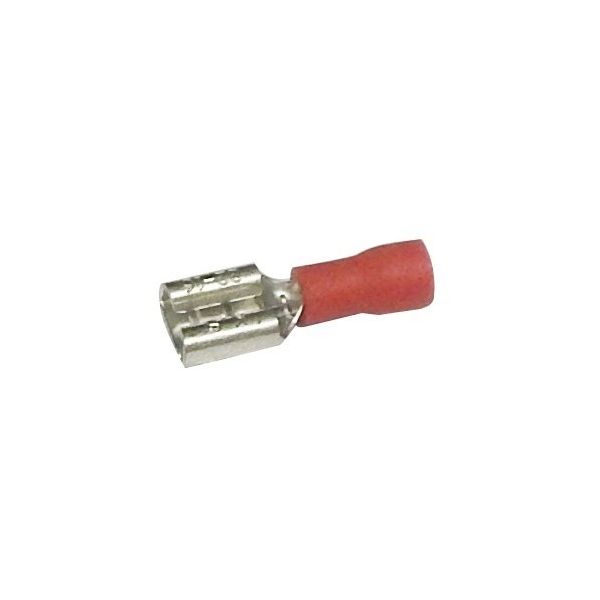

MORRIS Female Disconnect Terminal, 22 to 16 AWG Conductor, 0.032 x 0.25 in Tab, Butted Seam/Serrated Barrel, Crimp Terminal, 300 VAC, 0.016 in THK Wall, 0.067 in ID x 0.157 in OD x 0.394 in L Barrel, 167 deg F, Brass, Red, Electroplated Tin, 0.807 in L x 0.26 in W, Insulated: Insulated
- Vinyl color-coded insulation for easy identification
- Electro-tin plated for corrosion resistance
- Easy entry expanded insulation eliminates strand hang up, increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Serrated barrel provides excellent electrical contact and resistance to pull-out forces
- 3 A at 22 AWG to 10 A at 16 AWG maximum current
| Temperature Rating | 167 deg F |
|---|---|
| Insulated | Insulated |
| Color | Red |
| Dimensions | 0.807 in L x 0.26 in W |
| Specifications | 0.016 in THK Wall, 0.067 in ID x 0.157 in OD x 0.394 in L Barrel |
| Conductor Size | 22 to 16 AWG |
| Voltage Rating | 300 VAC |
| Barrel Type | Butted Seam/Serrated |
| Terminal Type | Crimp |
| Material | Brass |
| Finish | Electroplated Tin |
| Tab Size | 0.032 x 0.25 in |
| Brand | Morris |
| Terminals | Ring Terminal |
