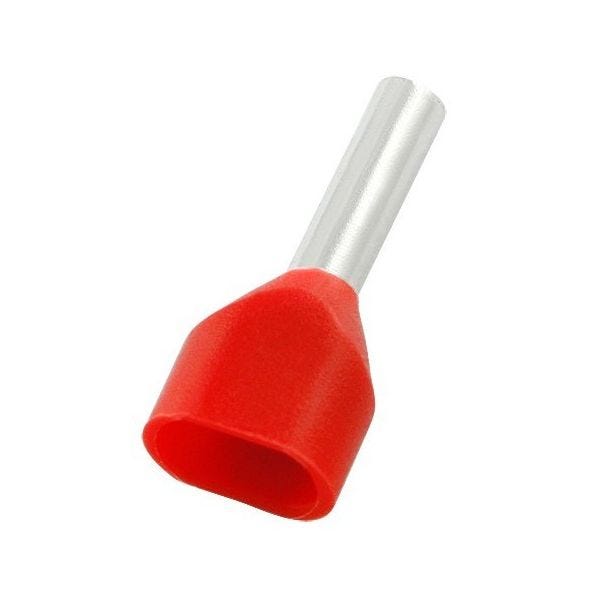

MORRIS Ferrule, 2-Wire Twin Insulated, 18 AWG Conductor, 0.673 in Length, Flared Barrel, 0.083 in ID x 0.094 in OD x 0.394 in L Barrel, 600 VAC, 17 A, 221 deg F, Tubular Copper, Electro-Plated Tin, Red, 0.217 in W
- Ensures gastight termination in IEC style DIN rail mounted terminal blocks
- Manufactured from high strength electrolytic seamless tubular copper
- Electro tin plated for corrosion resistance
- Funneled entry for ease of wire insertion
- Dual wire entry design facilitates termination of 2-conductor to a single point according to DIN standards
| Temperature Rating | 221 deg F |
|---|---|
| Color | Red |
| Dimensions | 0.217 in W |
| Specifications | 17 A |
| Barrel Size | 0.083 in ID x 0.094 in OD x 0.394 in L |
| Conductor Size | 18 AWG |
| Length | 0.673 in |
| Voltage Rating | 600 VAC |
| Barrel Type | Flared |
| Material | Tubular Copper |
| Type | 2-Wire Twin Insulated |
| Finish | Electro-Plated Tin |
| Brand | Morris |
