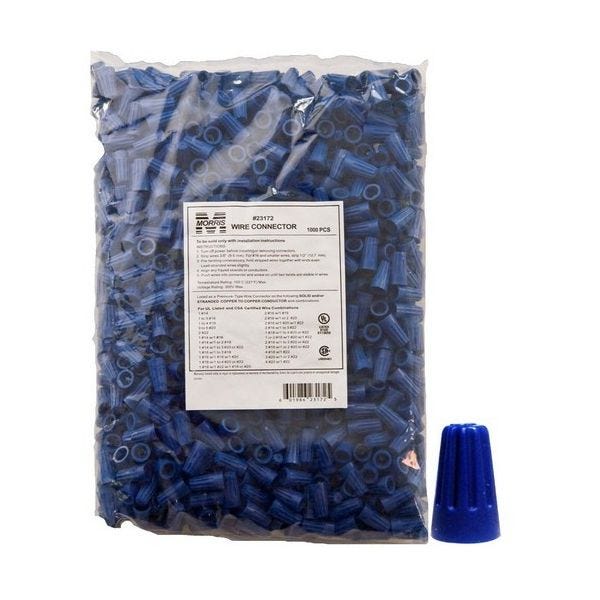

MORRIS 23172
16-14 #8 VINYL RING SM PK
SKU
681469
MORRIS Screw-On Wire Connector, Type P2 Heavy Duty, Positive Grip, Fixed/Conical Wire, 22 to 14 AWG Wire, 300 VAC, 221 deg F, Thermoplastic, Blue, 0.693 in H x 0.386 in W
- No pre-twisting of conductors is required, spring creates its own thread
- Reusable screw on wire connector threads On/Off splice for fast and easy circuit changes and additions
- Tough, UL 94 V-2 flame-retardant shell will not crack or break, even when applied to maximum wire combinations under extreme pressure
- Ribbed cap provides a more secure grip and faster fingertip starts even when hands become slippery
- Deep skirt wire entry provides protection from flash over and shorts
- Threaded funnel entry guides wire into connector cleanly without strand splaying
- Six color-coded screw on wire connectors cover a full range of wire sizes from 22 through 8 AWG
- (2) 22 to (3) 16 AWG wire size
| Temperature Rating | 221 deg F |
|---|---|
| Color | Blue |
| Dimensions | 0.693 in H x 0.386 in W |
| Spring Type | Fixed/Conical Wire |
| Shell Style | Positive Grip |
| Voltage Rating | 300 VAC |
| Material | Thermoplastic |
| Wire Size | 22 to 14 AWG |
| Type | Type P2 Heavy Duty |
| Brand | Morris |
| Terminals | Ring Terminal |
