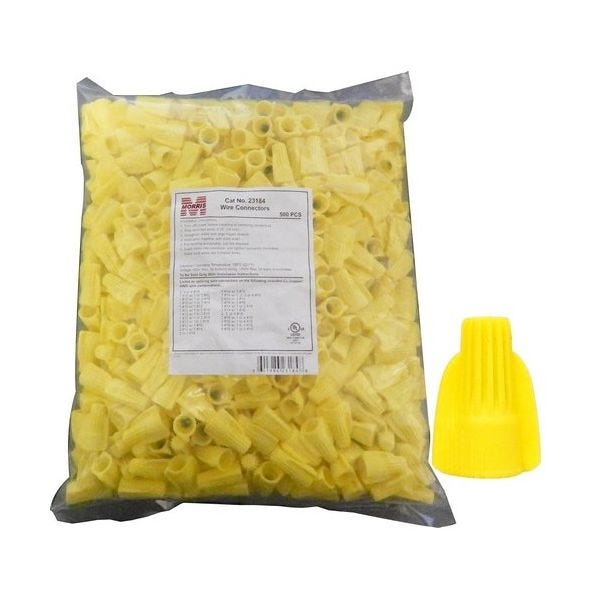

MORRIS Twist Connector, Heavy Duty, Winged, Live Action/Square Wire, 18 to 10 AWG Wire, 600/1000 VAC, 221 deg F, Thermoplastic, Yellow, 116 in H x 0.717 in W
- Winged twist connectors make connecting electrical wiring simple and easy
- Swept wing fits into your hand naturally to give extra torque leverage and reduce the effort required for connecting even large wire combinations, yet compact, with narrow profile to take up less space in junction boxes
- Ribbed cap on color-coded wire connectors provide more secure grip and faster fingertip starts even when hands become slippery
- Deep skirt entry provides protection from flashover or shorting and keeps strands from splaying
- Live action square wire spring draws wires deep into spring provides a more secure grip
- No pre-twisting of conductors is required, spring creates its own thread
- Connector will bite and hold on single conductor when capping isolated conductor
- Reusable connector threads On/Off splice for fast and easy circuit changes and additions
- Tough, heavy duty thick wall UL 94 V-2 flame-retardant housing will not crack or break, even when applied to maximum wire combinations under extreme pressure
- Color-coded wire connectors for easy identification
| Temperature Rating | 221 deg F |
|---|---|
| Color | Yellow |
| Dimensions | 116 in H x 0.717 in W |
| Spring Type | Live Action/Square Wire |
| Shell Style | Winged |
| Voltage Rating | 600/1000 VAC |
| Material | Thermoplastic |
| Wire Size | 18 to 10 AWG |
| Type | Heavy Duty |
| Brand | Morris |
