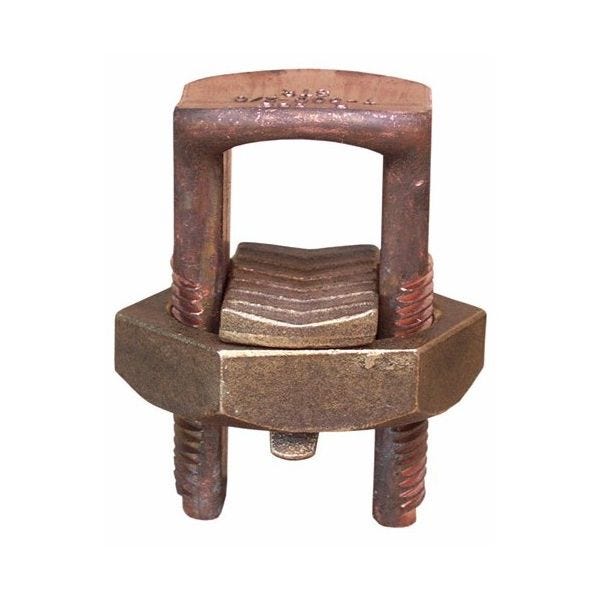

MORRIS Split Bolt Connector, Stranded Copper Conductor, 6 AWG Conductor, 600 VAC, 4 AWG Max Run to 14 AWG min Tap, 165 in-lb Torque, 75 deg C, Copper Alloy, 0.906 in L x 0.772 in W
- Split bolt connector is UL listed for copper and copper weld stranded wires only
- Manufactured from compact, high strength, high copper alloy
- Free running threads and easy to grip wrench flats
- Highly-resistant to season cracking and corrosion
- Provides a maximum pressure and ensures a secure connection on all combinations of connectors
- Split bolt connector is rated 600 VAC
- 4 AWG max run and tap, 8 AWG min run to 14 AWG min tap, 4 AWG max run to 14 AWG min tap, 8 AWG min equal tap and run
| Temperature Rating | 75 deg C |
|---|---|
| Dimensions | 0.906 in L x 0.772 in W |
| Specifications | 4 AWG Max Run to 14 AWG min Tap, 165 in-lb Torque |
| Conductor Size | 6 AWG |
| Voltage Rating | 600 VAC |
| Conductor Type | Stranded Copper |
| Material | Copper Alloy |
| Brand | Morris |
| Splices | Split Bolt Connectors |
