MORRIS 90714
12-10 5/16 VINYL RING SM
SKU
681477

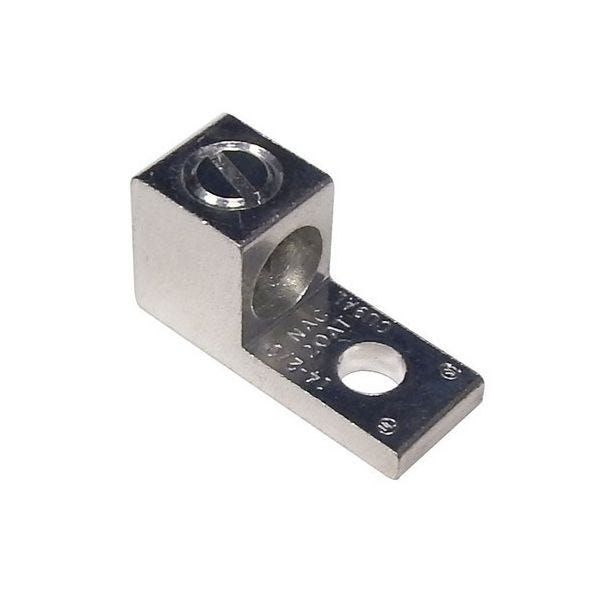

MORRIS Mechanical Lug, 1-Conductor Dual Rated Reusable, Solid/Stranded Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 0.27 in Stud, 1 Bolt Hole, 600 VAC, 194 deg F, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 1.16 in L x 0.5 in W x 0.56 in H
- 1-hole aluminum mechanical lug is manufactured from high strength 6061-T6 aluminum alloy to insure both maximum strength and conductivity
- AL9CU dual-rated for both copper and aluminum conductors
- Electro tin plated to provide low contact resistance and protection against corrosion
- Assembly can be made with only a screwdriver or Allen wrench and they are reusable
- Dual-Rated and Reusable One Hole Aluminum Conductor Lug
| Temperature Rating | 194 deg F |
|---|---|
| Dimensions | 1.16 in L x 0.5 in W x 0.56 in H |
| Conductor Size | 14 to 2 AWG |
| Stud Size | 0.27 in |
| Voltage Rating | 600 VAC |
| Conductor Type | Solid/Stranded Aluminum/Copper |
| Material | 6061-T6 Aluminum Alloy |
| Number of Bolt Holes | 1 |
| Type | 1-Conductor Dual Rated Reusable |
| Finish | Electro-Plated Tin |
| Brand | Morris |
| Terminals | Ring Terminal |
