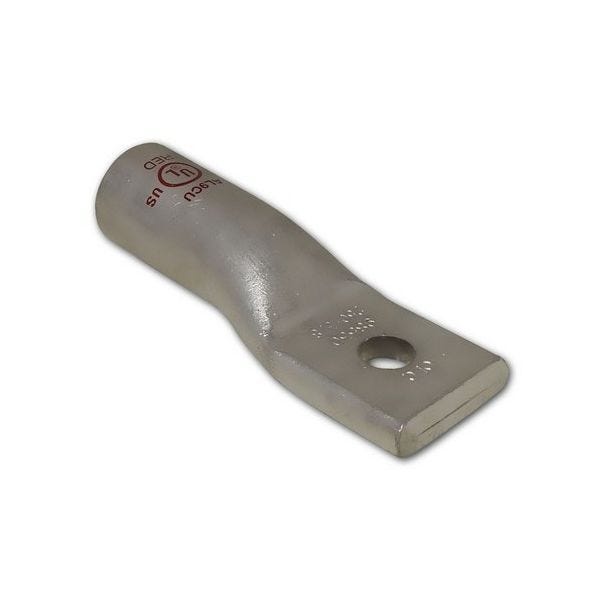

MORRIS Compression Lug, 1-Hole, Stranded Aluminum/Copper Conductor, 2/0 AWG Conductor, 35 kV, 3/8 in Stud, 1.12 in L x 0.94 in W x 0.24 in THK Tongue, 2.81 in Overall Length, Long Barrel, 0.44 in ID x 0.69 in OD x 1.3 in L Barrel, 0.41 in Mounting Hole, Aluminum, Olive
- 1-hole aluminum compression lugs are AL9CU dual-rated and accept both aluminum and copper conductors
- Connector barrel is coated with oxide inhibitor and capped
- Aluminum compression lug is made of high conductivity seamless aluminum
- Uniform bright electro tin plating resists corrosion, reduces contact resistance and gives you maximum conductivity
- Color-coded for easy identification
- Marked with die index
- Crimp marks indicate proper crimp locations
- Listed for 35 kv when properly installed
| Mounting Hole Size | 0.41 in |
|---|---|
| Conductor Type | Stranded Aluminum/Copper |
| Conductor Size | 2/0 AWG |
| Type | 1-Hole |
| Color | Olive |
| Voltage Rating | 35 kV |
| Barrel Type | Long |
| Tongue Size | 1.12 in L x 0.94 in W x 0.24 in THK |
| Overall Length | 2.81 in |
| Barrel Size | 0.44 in ID x 0.69 in OD x 1.3 in L |
| Stud Size | 3/8 in |
| Material | Aluminum |
| Brand | Morris |
