MORRIS 94238
16-14 VINYL BUTT SM PK
SKU
681492

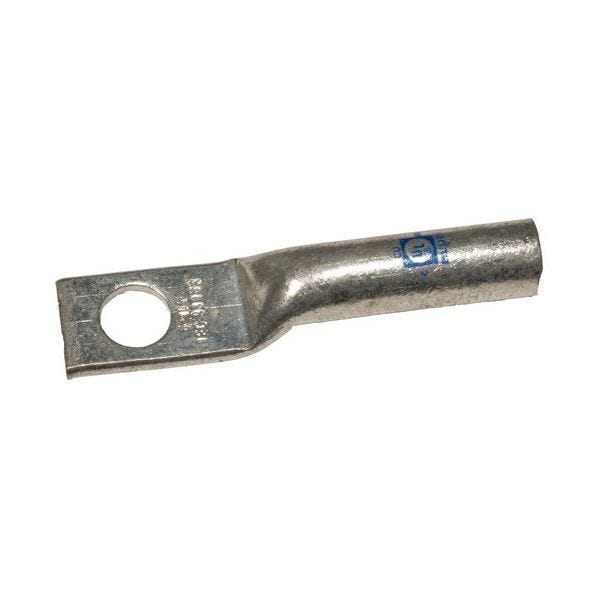

MORRIS Compression Lug, 1-Hole, Stranded Copper Conductor, 2/0 AWG Conductor, 35 kV, 3/8 in Stud, 1.06 in L x 0.81 in W x 0.12 in THK Tongue, 2.68 in Overall Length, Long Barrel, 0.44 in ID x 0.562 in OD x 1.38 in L Barrel, 90 deg C, 0.41 in Mounting Hole, Copper, Black
- 1-hole copper compression lugs are made of high conductivity seamless electrolytic copper
- Uniform bright electro tin plating resists corrosion, reduces contact resistance and gives you maximum conductivity
- Crimp marks indicate proper crimp locations
- Compression lugs are marked with die index and color codes for easy identification
- Long barrel accommodates multiple crimps
- Listed for 35 kv when properly installed
- Single Mounting Hole
| Temperature Rating | 90 deg C |
|---|---|
| Color | Black |
| Barrel Size | 0.44 in ID x 0.562 in OD x 1.38 in L |
| Conductor Size | 2/0 AWG |
| Stud Size | 3/8 in |
| Voltage Rating | 35 kV |
| Barrel Type | Long |
| Conductor Type | Stranded Copper |
| Overall Length | 2.68 in |
| Mounting Hole Size | 0.41 in |
| Tongue Size | 1.06 in L x 0.81 in W x 0.12 in THK |
| Material | Copper |
| Type | 1-Hole |
| Brand | Morris |
