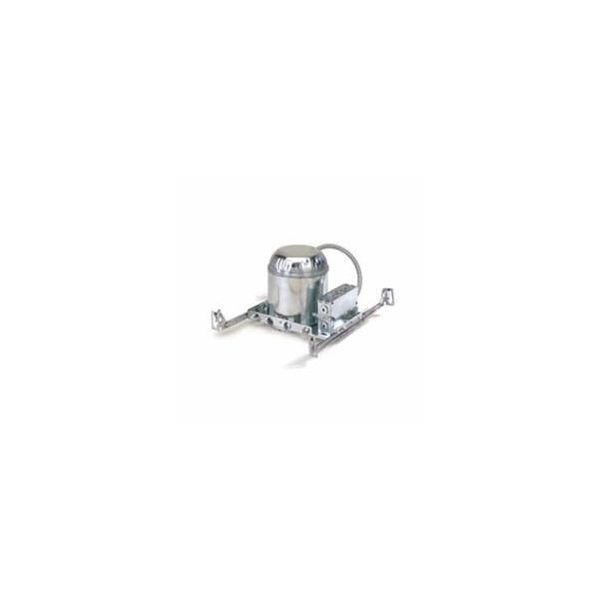

Nora Lighting NHIC-17QAT
6" IC AT NEW CONSTRUCT HOUSING
SKU
705275
Nora Lighting® Construction Housing, Airtight, 120 VAC, 100 W Lamp, 1 Lamps, Insulated Insulation, Ceiling Mount, For Use With: Line Voltage Lamp, 7-1/2 in Height, 7 in Width, 10-1/8 in Depth, Aluminum Housing, White
- New construction housing for use in insulated ceilings can be in direct contact with thermal insulation
- Airtight construction provides energy savings by reducing the flow of air through the ceiling
- Rated for direct contact with insulation
- Quick connect provided
- 24-1/2 in bar hangers with captive nails and alignment foot
- Accommodates 1-3/4 in maximum ceiling thickness
- High quality 0.040 steel die cut one piece frame
- 0.040 aluminum housing with riveted cap adjusts to maximum ceiling thickness of 1-3/4 in (45mm)
- Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2 cfm (cubic feet per minute) in accordance with ASTM-283 airtight requirements
- Galvanized steel socket plate adjusts inside housing for optimum light performance
| Type | Airtight |
|---|---|
| Lamp Wattage | 100 W |
| Suitable For Use With | Line Voltage Lamp |
| Width | 7 in |
| Mounting Type | Ceiling |
| Number of Lamps | 1 |
| Voltage Rating | 120 VAC |
| Color | White |
| Housing Material | Aluminum |
| Depth | 10-1/8 in |
| Insulation Type | Insulated |
| Height | 7-1/2 in |
| Brand | Nora Lighting |
