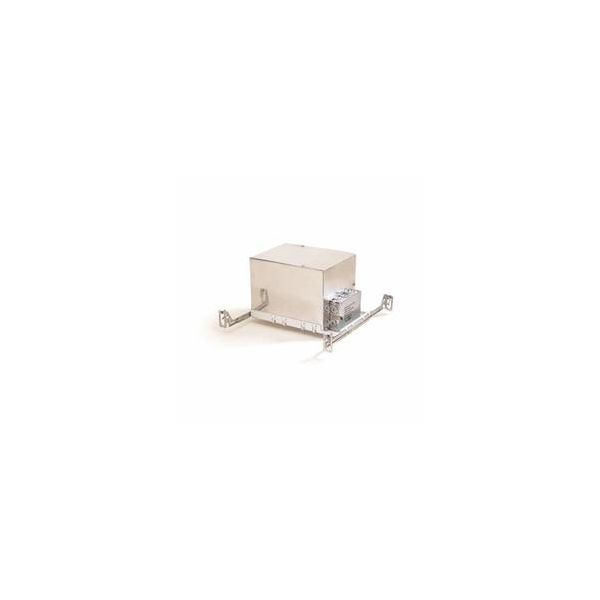

Nora Lighting NLIC-401QSAT
4" IC AT LOW VOLTAGE HOUSING
SKU
705190
Nora Lighting® Low Voltage Housing, Airtight Double Wall, 120 VAC, 12 VDC, 4-3/8 in Ceiling Opening, MR16 Lamp, 50 W Lamp, 1 Lamp, IC Thermal Insulation, Ceiling Mounting, For Use With: Low Voltage MR16 Lamp, 4 in Diameter, 7-1/4 in Height, 8-1/8 in Width, 12-11/16 in Depth, Steel Housing Material, White
- Pre-installed gaskets to restrict airflow from room into ceiling plenum housing
- IC housing is direct contact rated, no minimum clearance is required
- Ceiling thickness varies from 5/8 to 1-3/8 in
- Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment
- All low voltage trims include a tempered UV/shatter shield
- Bar hangers are adjustable from 13-5/8 to 24-1/2 in and can be repositioned 90 deg
- Junction box is listed for through branch circuit wiring and contains (7) 1/2 in knockouts and (4) Romex® pryouts with strain relief
- Use magnetic low voltage dimming control with magnetic transformer or electronic low voltage dimming control with electronic transformer
- Quick connector provided
| Type | Airtight Double Wall |
|---|---|
| Lamp Wattage | 50 W |
| Suitable For Use With | Low Voltage MR16 Lamp |
| Lamp Type | MR16 |
| Width | 8-1/8 in |
| Mounting Type | Ceiling |
| Number of Lamps | 1 |
| Voltage Rating | 120 VAC, 12 VDC |
| Color | White |
| Ceiling Opening | 4-3/8 in |
| Housing Material | Steel |
| Depth | 12-11/16 in |
| Diameter | 4 in |
| Insulation Type | IC Thermal |
| Height | 7-1/4 in |
| Brand | Nora Lighting |
