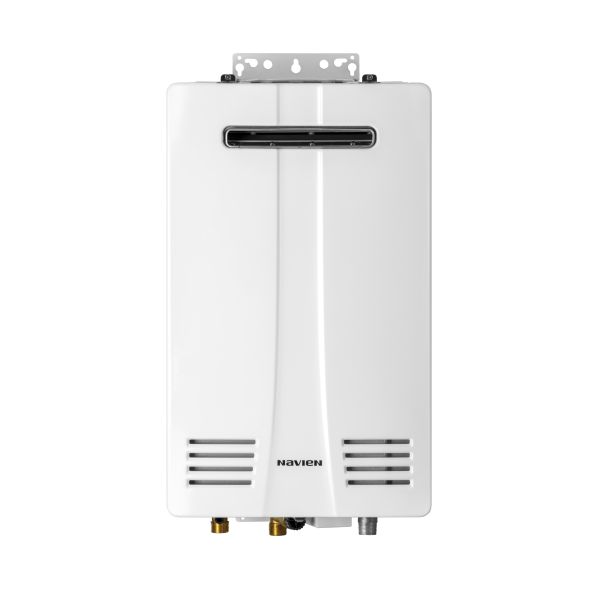

KD Navien NPN199ENG
199M .81EF 9.5GPM OUTDOOR NG
SKU
822734
KD Navien® Tankless Gas Water Heater, Premium Exterior, Series: NPN-E Series, 10700 to 199900 Btu/hr Heating, Natural Gas Fuel, 3/4 in NPT Gas Connection, Electronic Ignition, Non-Direct Vent, Non-Condensing Condensing/Non Condensing, 9.5 gpm at 35 deg F Flow Rate, 0.81 Energy Factor, Wall-Hung Mounting, 3/4 in NPT Water Connection, 15 to 150 psi Pressure, 98 to 140 deg F, Ultra Low Nox: No, Cold Rolled Carbon Steel, Outdoor Indoor/Outdoor, White, 14 in W x 9.3 in D x 23 in H Dimensions, Dual
- NaviTech™ stainless steel heat exchanger and burner
- Compatible with 3/5 in category III concentric vent up to 43 ft
- Built-in control panel - allows adjustment of temperature settings and displays the operating status and error codes
- Ready link cascade compatible for up to two units for increased hot water production
- Compatible with Wi-Fi control (#PBCM-AS-001)
- Freeze protection - maintains normal operation during freezing ambient temperatures down to -5 deg F (standard on all models)
- Low NOx emissions (20 ppm)
| Series | NPN-E Series |
|---|---|
| Energy Factor | 0.81 |
| Mounting Type | Wall-Hung |
| Indoor/Outdoor | Outdoor |
| Pressure Rating | 15 to 150 psi |
| Type | Premium Exterior |
| Vent Type | Non-Direct |
| Material | Cold Rolled Carbon Steel |
| Ignition Type | Electronic |
| Water Connection | 3/4 in NPT |
| Commercial/Residential/Dual | Commercial/Residential |
| Fuel Type | Natural Gas |
| Ultra Low NOx | No |
| Color | White |
| Dimensions | 14 in W x 9.3 in D x 23 in H |
| Flow Rate | 9.5 gpm at 35 deg F |
| Temperature Rating | 98 to 140 deg F |
| Condensing/Non Condensing | Non-Condensing |
| Gas Connection | 3/4 in NPT |
| Heating Capacity | 10700 to 199900 Btu/hr |
| Brand | Navien |
