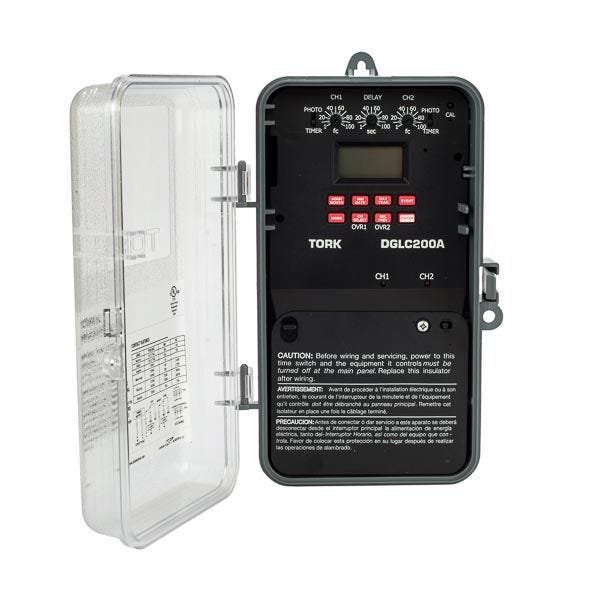

NSI DGLC200A-NC
TORK 24HR 7 DAY 2 CHANNEL
SKU
902604
NSI Tork® Time Switch, Series: DGU and DGLC, Operation Mode: 7 days, 120 to 277 VAC, 20 A, 1/4 to 1 hp, 1/2 to 2 hp, 1 Pole, 2 Channels, SPDT Contact Form, 1 to 240 min Time Setting, Digital LED Display, NEMA 3R Enclosure, -31 to 131 deg F, Threaded Mounting, 5 in L x 4-1/2 in W x 9-1/8 in H Dimensions
- 56 On/Off set points allow individual programs for each day of the week at a minimum 1 min apart
- Adjusts daily to changes in sunset time
- Adjustable 10 to 60 deg northern or southern latitudes can be individually offset +/-1 to 240 min from both sunset and sunrise times
- Turn on is user settable from 1 to 100 FC turn off is a maximum of 2 times turn on level
- Each channel has independent input for a maintained dry contact closure
- 2 sec contact closure on and Off to control mechanically held contactors or latching relays
- 9 holiday blocks can be set for individual days or for duration of any number of day
- Automatic adjustment (can be omitted)
- Automatic leap year compensation
- AM/PM or 24 hr clock format
- Permanent schedule retention
- 50/60 Hz frequency
- Plastic indoor/outdoor with clear Lexan® cover
- 6 VA maximum power consumption
- 18 to 12 AWG for line, 18 to 26 AWG sensor/switch input terminal
| Number of Channels | 2 |
|---|---|
| Contact Form | SPDT |
| Time Setting | 1 to 240 min |
| Dimensions | 5 in L x 4-1/2 in W x 9-1/8 in H |
| Horsepower | 1/4 to 1 hp, 1/2 to 2 hp |
| Voltage Rating | 120 to 277 VAC |
| Series | DGU and DGLC |
| Temperature Rating | -31 to 131 deg F |
| Enclosure Type | NEMA 3R |
| Display Type | Digital LED |
| Number of Poles | 1 |
| Amperage Rating | 20 A |
| Mounting Type | Threaded |
| Operation Mode | 7 days |
| Brand | NSI Ind |
| Amperage | 20 Amp |
| Type | Timers |
