NSI WC-O-C

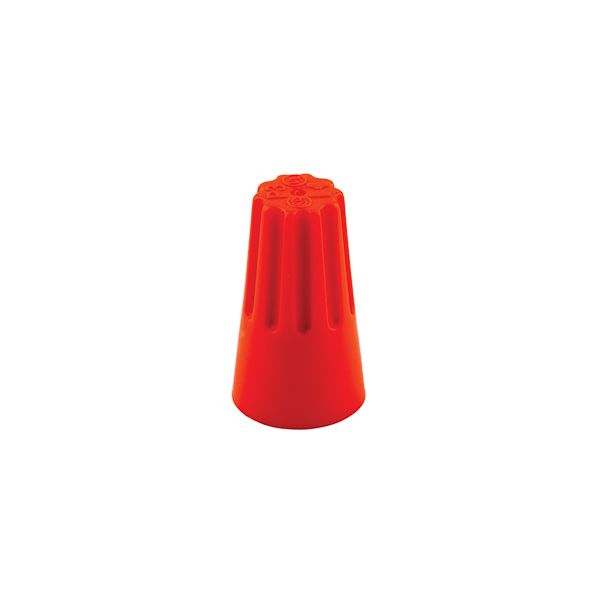

ORANGE WIRE NUT EASY TWIST 100
SKU
819527
NSI Easy-Twist™ Twist-On Wire Connector, Standard, Series: WC Series, Fixed/Square Wire Spring, Copper Wire, 22 to 14 AWG Wire, 600 VAC, Specifications: 1 Conductor, 0.197 in Dia Top, 105 deg C, Thermoplastic, Orange, 0.866 in H x 0.5 in W
- Flame retardant UL 94V-2 thermoplastic shell that provides excellent electrical insulation
- Sure-grip ribs improve gripping comfort
- Fixed, precise square wire spring provides secure gripping of conductors
- Deep skirt entry provides protection from flashover and shorts
- 1000 V maximum in fixtures and signs
- Compact design ensures proper installation, especially in tight spaces
- Threaded funnel entry guides the wires into the connector easily
- Pre-twisting of wires is not necessary
- Zinc plated springs for low contact resistance
- (1) 18 AWG with (1) 20 to (4) 16 AWG with (1) 20 AWG wire combinations
| Temperature Rating | 105 deg C |
|---|---|
| Color | Orange |
| Dimensions | 0.866 in H x 0.5 in W |
| Spring Type | Fixed/Square Wire |
| Specifications | 1 Conductor, 0.197 in Dia Top |
| Wire Type | Copper |
| Voltage Rating | 600 VAC |
| Series | WC Series |
| Material | Thermoplastic |
| Wire Size | 22 to 14 AWG |
| Type | Standard |
| Brand | NSI Ind |
