NSI WWC-R-C
RED WING WIRE NUT EASY TWIST
SKU
819535

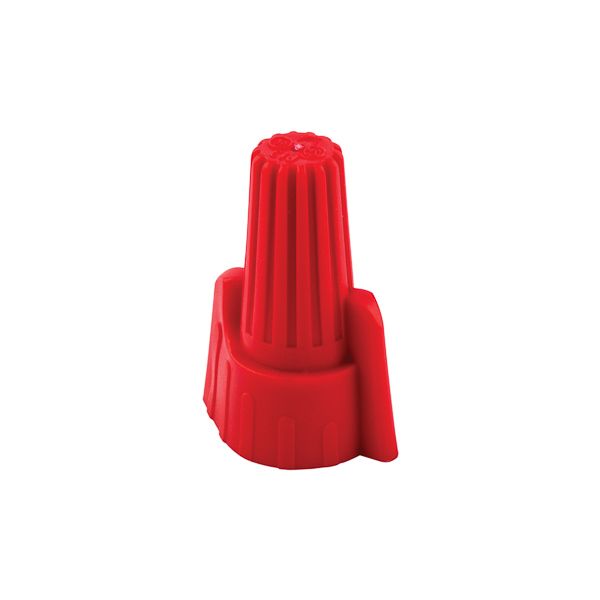

NSI Easy-Twist™ Wire Connector, 1-Conductor Winged Twist-On, Series: WWC Series, Winged/Twist-On Shell, Square Wire Spring, Copper Wire, 18 to 8 AWG Wire, 600 VAC, 105 deg C, Thermoplastic, Red, 0.354 in ID x 1.25 in H x 0.906 in W
- Easy-Twist™ winged twist-on wire connectors have deep surface ridges to provide better grip
- Ergonomic, swept back wing design provides handling comfort and increased torque ability
- Flame-retardant UL 94V-2 thermoplastic shell provides excellent electrical insulation
- Fixed, precise square wire spring provides secure gripping of conductors
- Deep skirt entry provides protection from flashover and shorts
- Compact design ensures proper installation especially in tight spaces
- Threaded funnel entry guides the wires into the connector easily
- Pre-twisting of wires is not necessary
- Zinc plated springs for low contact resistance
- For copper wire only
| Temperature Rating | 105 deg C |
|---|---|
| Color | Red |
| Dimensions | 0.354 in ID x 1.25 in H x 0.906 in W |
| Spring Type | Square Wire |
| Wire Type | Copper |
| Shell Style | Winged/Twist-On |
| Voltage Rating | 600 VAC |
| Series | WWC Series |
| Material | Thermoplastic |
| Wire Size | 18 to 8 AWG |
| Type | 1-Conductor Winged Twist-On |
| Brand | NSI Ind |
