BrassCraft NV105-4X
LF 1/4 OD COMP NEEDLE VALVE 142-4
SKU
1204

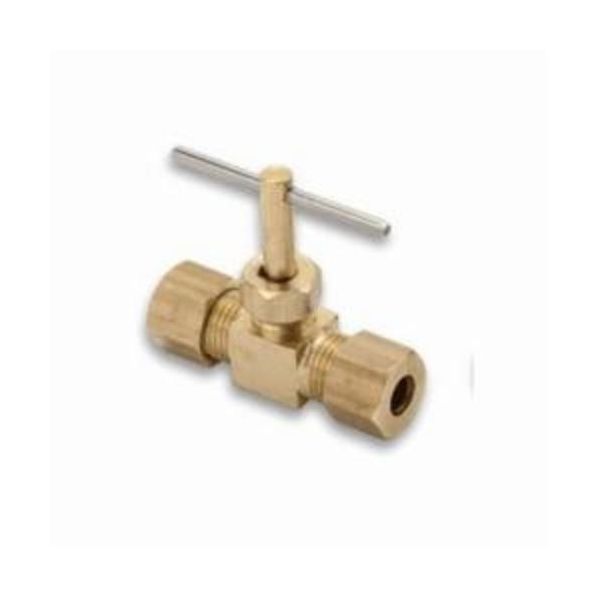

BrassCraft® Needle Valve, Straight, Series: NV105, 1/4 in Nominal, Compression End Style, 150 psi Pressure, -65 to 250 deg F, 1.18 in Inlet to Outlet Length, 1.18 in Top to Inlet Center, Brass Body, Brass Trim, EPDM Packing Washer Softgoods, Rough, Import
- Not intended for natural gas, LPG, nuclear or aircraft applications
- Metal-to-metal seats with fine thread adjustment
- Positive sealing and flow adjustment up to the capacity of the valve
- 40 to 140 deg F for water applications, 115 deg F maximum continuous use temperature
- Steel handle
- Complaint needle valve options available for California and Vermont "low-lead" requirements
- Complaint brass stem
- Complaint brass body
- For use on instrumentation, hydraulic and pneumatic system
| Temperature Rating | -65 to 250 deg F |
|---|---|
| Finish | Rough |
| End Style | Compression |
| Body Material | Brass |
| Type | Straight |
| Softgoods Material | EPDM Packing Washer |
| Trim Material | Brass |
| Inlet to Outlet Length | 1.18 in |
| Top to Inlet Center | 1.18 in |
| Domestic/Import | Import |
| Nominal Size | 1/4 in |
| Series | NV105 |
| Pressure Rating | 150 psi |
| Brand | BrassCraft |
| OD Tube Size | 1/4" |
| Type | Valve |
