PPP P2-500
1/2"PPP AUTO.FL/DR TRAP PRIMER
SKU
236353

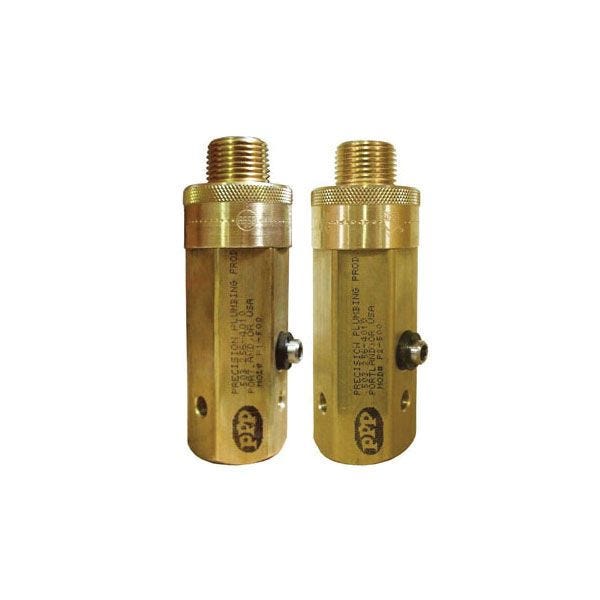

PPP® Trap Primer Valve, 1/2 in FNPT x 1/2 in MNPT, 1-1/8 in W x 4-3/8 in H, Domestic
- A pressure drop of 10 psig is required to activate the priming valve
- The valves operating range is 20 to 80 psig
- Adjustable to line pressure
- Piston operated, contains no springs or diaphragms
- Easily adjusted to high or low pressures
- Constructed of 360 brass, EPDM E70 O-rings, Dow Silicone, stainless steel mesh screen, stainless steel adjustment screw
- Model P-2 will prime 1 to 2 floor drains using the PPP Patented distribution system
| Dimensions | 1-1/8 in W x 4-3/8 in H |
|---|---|
| Connection | 1/2 in FNPT x 1/2 in MNPT |
| Domestic/Import | Domestic |
| Brand | Precision Plastics |
