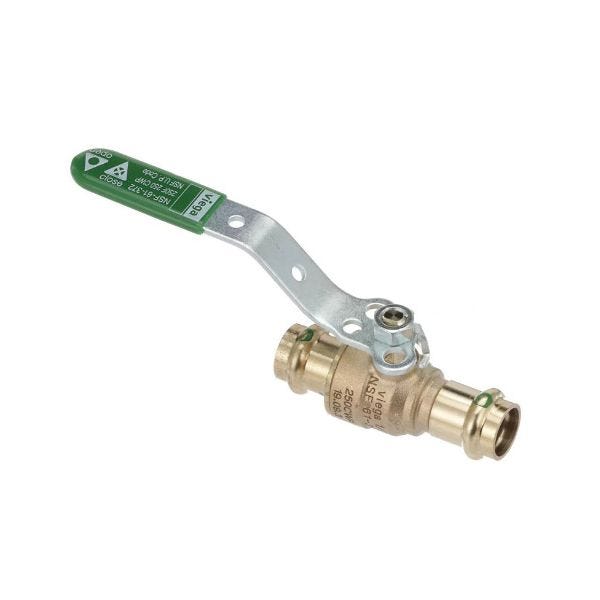

ProPress 79950
2"PXP BRONZE BALL VALVE ZL
SKU
872916
ProPress® Ball Valve, 2-Piece, Series: 2971.1ZL, 2 in Nominal, Press, 250 psi CWP, 0 to 250 deg F, Full Port, Media: Water, Locking Handle Actuator, 316 Stainless Steel Ball, 3.32 in Top to Inlet Center, C87700 Bronze Body, C69300 Brass/PTFE Trim, EPDM, Import
- Multiple system and connection solutions
- 316 stainless steel ball
- Smart Connect® technology
- Installs within minutes - up to 80% faster than conventional methods
- Same tool used for installation of ball valves and fittings
- No flame, fire watch or hot work permits required
- PTFE seat/C69300 brass stem
- EPDM seal
| Softgoods Material | EPDM |
|---|---|
| End Style | Press |
| Temperature Rating | 0 to 250 deg F |
| Domestic/Import | Import |
| Body Material | C87700 Bronze |
| Port Type | Full |
| Ball Material | 316 Stainless Steel |
| Type | 2-Piece |
| Nominal Size | 2 in |
| Top to Inlet Center | 3.32 in |
| Series | 2971.1ZL |
| Pressure Rating | 250 psi CWP |
| Actuator Type | Locking Handle |
| Media | Water |
| Trim Material | C69300 Brass/PTFE |
| Brand | ViegaProPress |
| Valves | Ball |
| Connection Type | Press |
| Size | 2" |
