Fasco A247
FASCO A247 RHEEM 115V INDUCER
SKU
821756

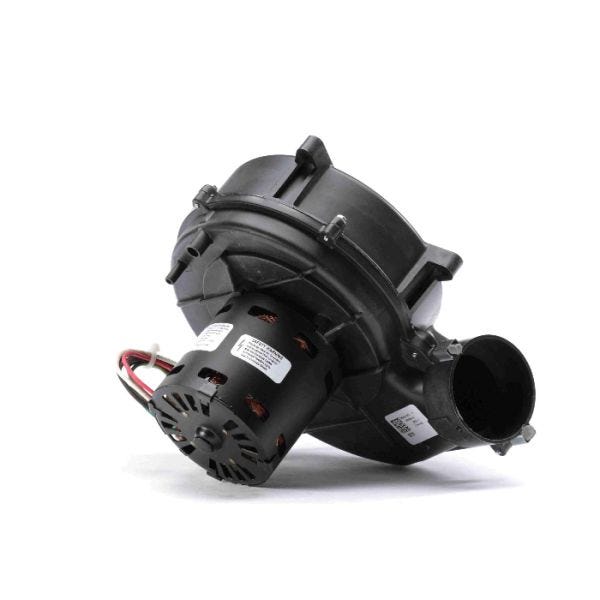

Fasco® OEM Direct Replacement Draft Inducer Blower, Round Outlet, 65 cfm Flow Rate, Permanent Split Capacitor Motor, 115 VAC, 0.95 A, 1/40 hp Power, 5 in Vent/Duct, 2 Speed, 3139 rpm Speed, CW Rotation, 42 Frame, Thermally Protected Overload, Sleeve Bearing, Flat Black, Open Enclosure, 7.69 in W x 6.68 in D x 9.1 in H
- 19 in leads with stripped end
- OEM Direct Replacement - Draft Inducer Blower
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40 deg C Ambient
- Sleeve Bearing
| Motor Type | Permanent Split Capacitor |
|---|---|
| Flow Rate | 65 cfm |
| Vent/Duct Size | 5 in |
| Enclosure Type | Open |
| Top Width | 1/2 in |
| Number of Speeds | 2 |
| Outside Length | 26.2 in |
| Rotation Type | CW |
| Bearing Type | Sleeve |
| Color | Flat Black |
| Rotation Type | CW |
| Type | Round Outlet |
| Dimensions | 7.69 in W x 6.68 in D x 9.1 in H |
| Overload Type | Thermally Protected |
| Voltage Rating | 115 VAC |
| Power Rating | 1/40 hp |
| Speed | 3139 rpm |
| Vent/Duct Size | 5 in |
| Overload Type | Thermally Protected |
| Thickness | 5/16 in |
| Frame Type | 42 |
| Section Size | A |
| Motor Type | Permanent Split Capacitor |
| Amperage Rating | 0.95 A |
| Brand | Packard Inc |
