Panasonic PC-RD05C5
PANASONIC RADIATION DAMPER
SKU
746181

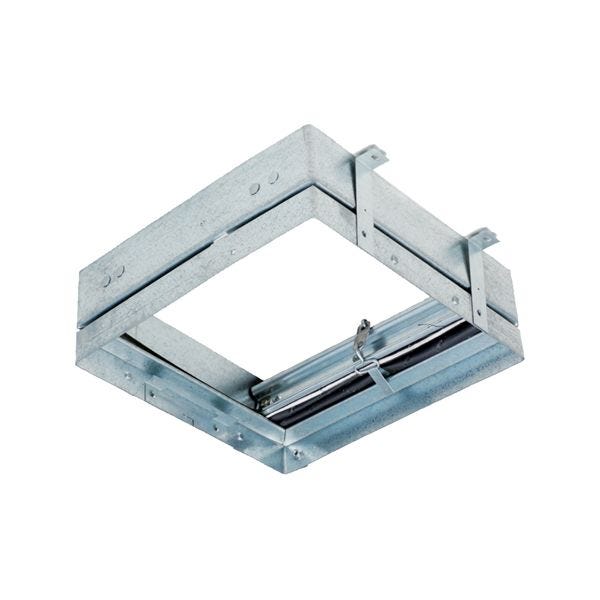

Panasonic Flexible Radiation Damper, All-In-One, Square, Ceiling Mount, Steel, Galvanized, 11-7/8 in W x 11-7/8 in D x 3-1/4 in H
- Folded ceramic curtain style damper to meet both combustible and non-combustible UL assemblies
- Allows for two stage construction, fan housing and damper sleeve during framing, fan/motor/damper installation after finishes
- Easy access to fan/motor/damper for maintenance
- Compatible with most Panasonic 10-1/4 in 50 to 150 cfm fans, fan/lights and fans with motion sensor
- Galvanized steel frame with 165 deg F fusible link
- High temperature, non-asbestos, reinforced fiber thermal fabric damper
| Type | All-In-One |
|---|---|
| Shape | Square |
| Finish | Galvanized |
| Material | Steel |
| Dimensions | 11-7/8 in W x 11-7/8 in D x 3-1/4 in H |
| Mounting Type | Ceiling |
| Brand | Panasonic |
