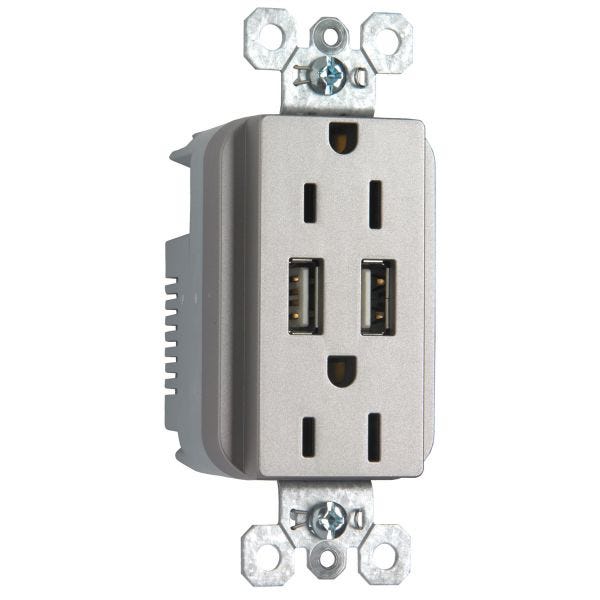

Pass & Seymour TM826USBNICC6
RECPT W/USB "RADIANT" NICKEL
SKU
858314
Pass & Seymour® radiant® USB Charger, Decorator, Series: TM Series, 15 A, 125 VAC Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Standard Type-A 2.0/3.0 USB, 2 USB Quantity, 3.1 A at 5 VDC USB, 2.67 in H x 1.69 in W x 1.39 in D Size, Thread Connection, Surface Mounting, Wiring Method: Back/Side Wired, Nylon/Polycarbonate, Nickel
- Part of the all new Radiant® collection
- Charge two devices simultaneously while still using the receptacle
- Compatible with USB 2.0 and 3.0 devices
- Total charging capacity of 3.1 A
- AC receptacles are tamper resistant to meet NEC®
- Patented shutter system now with black invisi shutters for an invisible effect preferred by end users-prevents improper insertion of foreign objects
- Back and side wire terminals accommodate 14 to 10 AWG stranded and solid copper wire
- Accepts standard Pass & Seymour® wall plates and Radiant® screwless wallplates
- Tamper-resistant duplex receptacles with USB charging capabilities are designed to upgrade existing receptacles
- The screw pressure plate back wiring makes installation fast and easy
- 1500 VAC minimum dielectric strength voltage
| USB Type | Standard Type-A 2.0/3.0 |
|---|---|
| Color | Nickel |
| USB Quantity | 2 |
| Wiring Method | Back/Side Wired |
| Electrical Ratings | 15 A, 125 VAC |
| Connection | Thread |
| Material | Nylon/Polycarbonate |
| Number of Poles | 2 |
| Type | Decorator |
| Mounting | Surface |
| Size | 2.67 in H x 1.69 in W x 1.39 in D |
| Series | TM Series |
| Wire Size | 14 to 10 AWG |
| Number of Wires | 3 |
| USB Rating | 3.1 A at 5 VDC |
| Brand | Legrand |
