ProLine 107-023NL

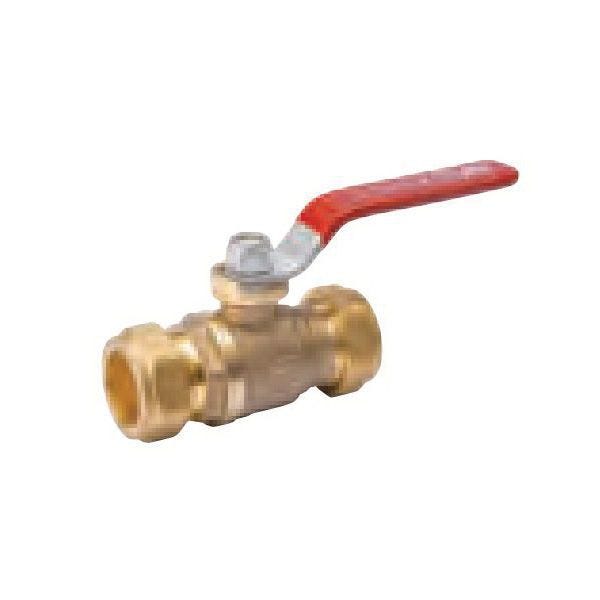

LF 1/2(5/8OD)COMP BALL VALVE
SKU
570371
ProLine™ Ball Valve, Series: 7700, 1/2 in Nominal, Compression, 200 psi WOG, -20 to 300 deg F, Full Port, Brass Ball, Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods, 5/8 in OD
- Wetted surfaces contains less than 0.25% lead content
- PTFE disc
| Softgoods Material | PTFE |
|---|---|
| Dimensions | 5/8 in OD |
| Port Type | Full |
| End Style | Compression |
| Ball Material | Brass |
| Pressure Rating | 200 psi WOG |
| Body Material | Brass |
| Nominal Size | 1/2 in |
| Temperature Rating | -20 to 300 deg F |
| Series | 7700 |
| Trim Material | Brass Stem and PTFE Seat |
| Brand | Mueller ProLine |
| Type | Ball Valve |
| Size | 1/2" |
