Morse Cutting Tools 12200
TURBO 200 2.5-67.5 370/440 CAP
SKU
525341

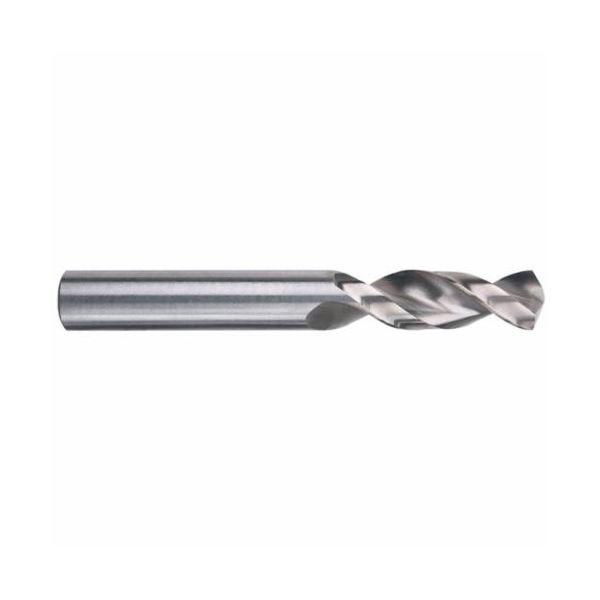

MORSE® Screw Machine Drill, High Performance Heavy Duty Web, Series: 1360, Metric/Imperial, 2.5 mm Drill - Metric, 0.0984 in Drill - Decimal Inch, 43 mm Overall Length, 3XD Cutting Depth, Wide Land Parabolic Flute, 14 mm Flute Length, 2.5 mm Shank, Straight Shank, 130 deg Point, Self-Centering Point, Right Hand Cutting Direction, M35 Cobalt Cutting Edge, M35 Cobalt, Bright, Applicable Materials: Alloy Steel, Ferrous Casting, Inconel, Stainless Steel, Titanium and Other Difficult-to-Drill Material
- M35 cobalt offers increased hardness, toughness, wear resistance and heat resistance
- Highly recommended for drilling tough, high tensile strength materials up to 35 rc hardness and materials that generate higher cutting temperatures
- Short flute length and short overall length for maximum rigidity
| Series | 1360 |
|---|---|
| Point Type | Self-Centering |
| Cutting Direction | Right Hand |
| Flute Length | 14 mm |
| Cutting Depth | 3XD |
| Applicable Materials | Alloy Steel, Ferrous Casting, Inconel, Stainless Steel, Titanium and Other Difficult-to-Drill Material |
| Drill Size - Metric | 2.5 mm |
| Shank Type | Straight |
| Cutting Edge Material | M35 Cobalt |
| Shank Size | 2.5 mm |
| Drill Diameter Measurement System | Metric/Imperial |
| Drill Size - Decimal Inch | 0.0984 in |
| Point Angle | 130 deg |
| Flute Type | Wide Land Parabolic |
| Finish | Bright |
| Type | High Performance Heavy Duty Web |
| Material | M35 Cobalt |
| Overall Length | 43 mm |
| Brand | Diversitech |
