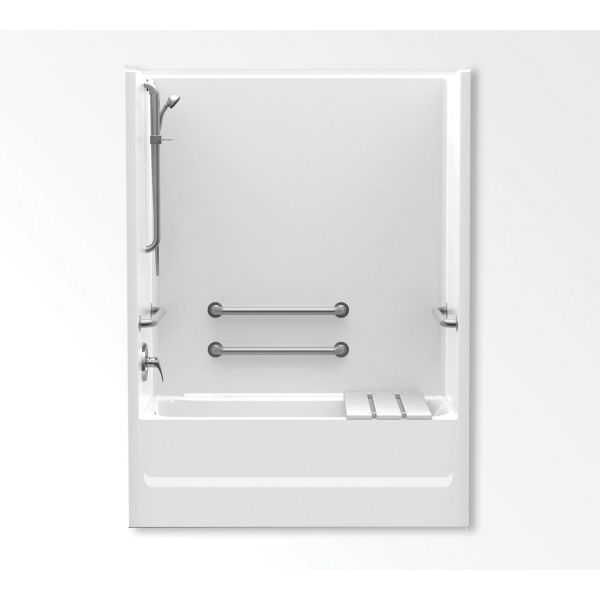

Aquatic AC003393-X4HBLS-WH
WHITE 60" 1 PC T/S BASE UNIT
SKU
878721
Aquatic Tub Shower Stall, 1-Piece, Series: FreedomLine 2603SMTHR, Accessible, Squared Shape, 56 in Length, 30-3/4 in Width, 80 in Height, 56 in Tub Width, 56 in W Opening, Right Drain Location, 4 Grab Bars, 2 in Drain Connection, Alcove Mounting, Gel-Coated/White, Domestic
- Right drain location
- AcrylX™ applied acrylic surface
- Above-floor rough
- Smooth wall finish
- Partial reinforcement to accommodate standard grab bar locations
- Skirt height: 19 in
- Sump width (top): 23-1/4 in
- Sump depth (top): 53-3/4 in
- Sump width (bottom): 21-1/4 in
- Sump depth (bottom): 45-1/4 in
- Sump height: 13-5/8 in
- Soaking depth: 9-3/4 in
- Capacity to overflow: 38 gal
- Backrest slope: 56 deg
- Deck height: 19 in
- Tub drain location (from back wall): 15 in
- Tub drain location (from side wall): 8-1/2 in
- Drain clearance: 4-3/4 in
- Overflow height: 11-1/8 in
- Stub up (from side wall): 1-1/2 in
| Series | FreedomLine 2603SMTHR |
|---|---|
| Drain Location | Right |
| Collection | Accessible |
| Opening Size | 56 in W |
| Shape | Squared |
| Domestic/Import | Domestic |
| Type | 1-Piece |
| Mounting Type | Alcove |
| Drain Connection | 2 in |
| Number of Grab Bars | 4 |
| Length | 56 in |
| Tub Width | 56 in |
| Width | 30-3/4 in |
| Height | 80 in |
| Finish/Color | Gel-Coated/White |
| Brand | Aquatic |
