Scotchlok 7100017418
42714 INS RING TERM STANDARD
SKU
701519

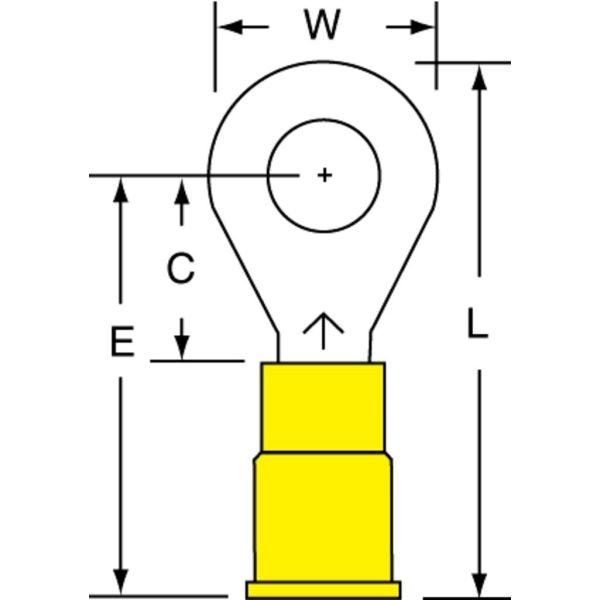

Scotchlok™, 7100017418, Terminal, Insulated, 12 to 10 AWG Conductor, 1/4 in Stud, 1.26 in Length, Brazed Seam Barrel, 0.135 in ID x 0.25 in L Barrel, Ring Tongue, 0.53 in W x 0.04 in THK Tongue, 600/1000 VAC, Specifications: 1/4 in Dia Max Insulation, 0.44 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Yellow
- Yellow vinyl insulated, brazed seam barrel ensures a secure fit and offers reliable performance
- Funnel designed, PVC sleeve offers easy insertion of wires
- Standard style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
- Crimp termination
- Free hanging (in-line) mounting
- 500 terminals/case
| Temperature Rating | -40 to 221 deg F |
|---|---|
| Color | Yellow |
| Specifications | 1/4 in Dia Max Insulation, 0.44 in Clearance |
| Barrel Size | 0.135 in ID x 0.25 in L |
| Conductor Size | 12 to 10 AWG |
| Length | 1.26 in |
| Stud Size | 1/4 in |
| Voltage Rating | 600/1000 VAC |
| Barrel Type | Brazed Seam |
| Tongue Size | 0.53 in W x 0.04 in THK |
| Tongue Type | Ring |
| Material | Vinyl |
| Type | Insulated Standard |
| Finish | Tin Plated |
| Brand | 3M |
| Terminals | Ring Terminal |
