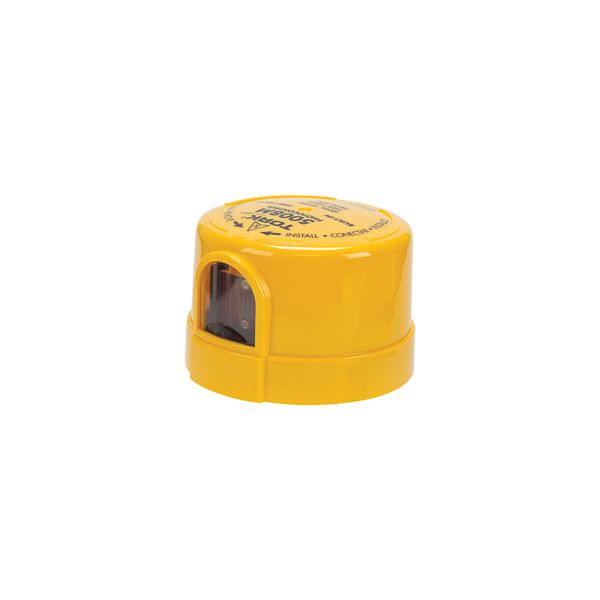

NSI 5008ME
PHOTOCELL 480V TWISTLOK
SKU
902416
NSI TORK® Turn Lock Photocontrol, Delayed Response Thermal Utility-Grade, Series: 5008 Series, 480 VAC, 50/60 Hz Frequency, 7500 W Tungsten, 4800 VA Ballast, 380 J Arrester, 0 to 2 min Timing, Silicon Photo Sensor, 1 to 3 FC (ON), 5 Max FC Average (OFF) to (ON) Ratio Sensitivity, Environmental Conditions: -40 to 140 deg F Operating Temperature, Twist-Lock Mounting, Polycarbonate, Yellow, 2.187 in H x 3.187 in W Dimensions
- Conformal coated cadmium sulphide photocell resists effects of moisture and airborne contaminants
- Photocell responds to the light spectrum near to that of a human eye
- Delayed response prevents false switching due to light from vehicles or lighting
- Polycarbonate housing and window, UV stabilized for permanent color
- Provides high impact performance, flammability resistance and electrically safe operations
- Fail mode ON
| Sensitivity | 1 to 3 FC (ON), 5 Max FC Average (OFF) to (ON) Ratio |
|---|---|
| Tungsten Rating | 7500 W |
| Ballast Load | 4800 VA |
| Material | Polycarbonate |
| Arrester | 380 J |
| Voltage Rating | 480 VAC |
| Color | Yellow |
| Sensor Type | Silicon Photo |
| Timing Range | 0 to 2 min |
| Type | Delayed Response Thermal Utility-Grade |
| Mounting Type | Twist-Lock |
| Environmental Conditions | -40 to 140 deg F Operating Temperature |
| Dimensions | 2.187 in H x 3.187 in W |
| Frequency Rating | 50/60 Hz |
| Series | 5008 Series |
| Brand | NSI Ind |
